Sensorless Homing

Sensorless homing uses the DIAG signal from a TMC driver to detect motor stall, thereby replacing physical limit switches.

Prerequisites

All of the following conditions must be met simultaneously:

1. The motherboard supports the DIAG function.
2. The driver supports DIAG signal output.
3. No device should be connected to the corresponding endstop port.
4. The machine structure is suitable for sensorless homing, and moving parts will not be damaged when hitting the end stops.

Motherboard Compatibility Check

Type	Support	Representative Models	Operation Requirements
Type A	Default direct connection	Super / Gemini / CDY / E3 series	Use the corresponding endstop interface directly
Type B	Jumper required to enable	D / C / Pro-X10 / Micro series	Must install the DIAG jumper cap
Type C	Not supported	Fly-F407ZG	Cannot use sensorless homing

Confirmation method:

1. Check if the motherboard has a jumper header labeled DIAG.
2. Consult the schematic to confirm if the DIAG signal from the driver interface is connected to the endstop port.
3. On most motherboards, Drive0 corresponds to io0, Drive1 corresponds to io1, and so on.

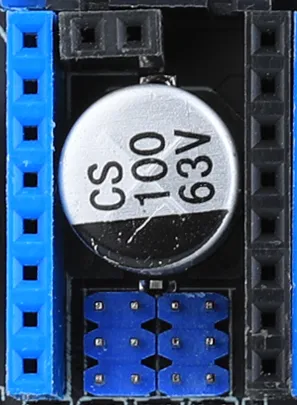

Type A motherboards: No DIAG jumper, the signal is directly connected to the corresponding endstop port by default.

Loading...

Type B motherboards: Require using the DIAG jumper.

Loading...

Driver Compatibility Check

Tip

TMC5160, TMC2240, and TMC2130 typically have two DIAG pins. Please refer to the corresponding product documentation or consult customer service to confirm which pin to use.

Driver Model	Compatibility	DIAG Pin	Configuration Requirements	Sensitivity Range
TMC2209	Supported	Single pin	Use diag_pin directly	0-255, 255 most sensitive, 0 least sensitive
TMC5160	Supported	Dual pins	Select diag0_pin or diag1_pin	-64-63, -64 most sensitive, 63 least sensitive
TMC2240	Supported	Dual pins	Select diag0_pin or diag1_pin	-64-63, -64 most sensitive, 63 least sensitive
TMC2130	Supported	Dual pins	Select diag0_pin or diag1_pin	-64-63, -64 most sensitive, 63 least sensitive
TMC2208	Not supported	-	Cannot use sensorless homing	-
TMC2660	Not supported	-	Cannot use sensorless homing	-
LV8729	Not supported	-	Cannot use sensorless homing	-

Configuration Notes

• The configuration needs to be modified according to the actual driver model and axis name.
• tmc2209 in tmc2209_stepper_x needs to be changed to the corresponding driver model.
• x in stepper_x represents the X-axis. If configuring the Y-axis, it needs to be changed to stepper_y.
• On some machines, retraction during sensorless homing can cause homing failure. homing_retract_dist should be set to 0 in this case.

Reference Configuration

• TMC2209 Reference Configuration
• TMC5160 Reference Configuration
• TMC2130 Reference Configuration
• TMC2240 Reference Configuration

Notes:

• The pins below are for reference only and need to be modified according to the actual motherboard.
• diag_pin usually needs to be prefixed with ^, otherwise it may cause homing failure.
• driver_SGTHRS needs to be tested in practice; 255 is the most sensitive, 0 is the least sensitive.

printer.cfg

[stepper_x]
endstop_pin: tmc2209_stepper_x:virtual_endstop
position_endstop: 0
homing_retract_dist: 0

[tmc2209 stepper_x]
diag_pin: ^PD9
driver_SGTHRS: 100

Notes:

• The pins below are for reference only and need to be modified according to the actual motherboard.
• Check the product manual to confirm whether to use diag0_pin or diag1_pin.
• driver_SGT needs to be tested in practice; -64 is the most sensitive, 63 is the least sensitive.

printer.cfg

[stepper_y]
endstop_pin: tmc5160_stepper_y:virtual_endstop
position_endstop: 0
homing_retract_dist: 0

[tmc5160 stepper_y]
diag1_pin: ^!PD9
driver_SGT: 1

Notes:

• The pins below are for reference only and need to be modified according to the actual motherboard.
• Check the product manual to confirm whether to use diag0_pin or diag1_pin.
• driver_SGT needs to be tested in practice; -64 is the most sensitive, 63 is the least sensitive.

printer.cfg

[stepper_y]
endstop_pin: tmc2130_stepper_y:virtual_endstop
position_endstop: 0
homing_retract_dist: 0

[tmc2130 stepper_y]
diag1_pin: ^!PD9
driver_SGT: 1

Notes:

• The pins below are for reference only and need to be modified according to the actual motherboard.
• Check the product manual to confirm whether to use diag0_pin or diag1_pin.
• driver_SGT needs to be tested in practice; -64 is the most sensitive, 63 is the least sensitive.

printer.cfg

[stepper_x]
endstop_pin: tmc2240_stepper_x:virtual_endstop
position_endstop: 0
homing_retract_dist: 0

[tmc2240 stepper_x]
diag1_pin: ^!PD9
driver_SGT: 1

Sensitivity Test

Test Safety

When testing sensorless homing, the print head must be moved to the center of the machine, and you must be ready to execute M112 emergency stop at any time. Do not test at high speed or unattended.

Step 1: Set Maximum Sensitivity

TMC2209:

SET_TMC_FIELD STEPPER=stepper_x FIELD=SGTHRS VALUE=255

TMC5160 / TMC2240 / TMC2130:

SET_TMC_FIELD STEPPER=stepper_x FIELD=sgt VALUE=-64

Step 2: Perform Single Axis Homing

G28 X

If the axis does not start moving, moves abnormally, or cannot stop, execute immediately:

M112

In this case, check the corresponding DIAG pin wiring, jumper cap, and configuration.

Step 3: Gradually Decrease Sensitivity

• TMC2209: Gradually decrease SGTHRS.
• TMC5160 / TMC2240 / TMC2130: Gradually increase sgt.
• After each adjustment, re-execute SET_TMC_FIELD and the single-axis homing test.

The goal is to find the highest reliable sensitivity that allows the carriage to move stably to the end stop and stop.

Step 4: Write Back to Configuration

After finding a suitable value through testing, write this value back to the corresponding driver configuration in printer.cfg.

If there are still noticeable impact sounds, clicking noises, or inconsistent triggering at maximum sensitivity, it usually indicates that the homing speed is too low, the driver current is too low, there is abnormal mechanical resistance, or the axis is not suitable for sensorless homing.
