Screen Wiring and Configuration

Screen Wiring

TFT Screen Wiring

TFT Screen Wiring

tip

• The TFT screen package will include two FPC cables, one is 14P (narrow), the other is 16P (wide)
• lite2.1 must use 16P (wide) !!!

1. FLY-lite TFT Screen Wiring

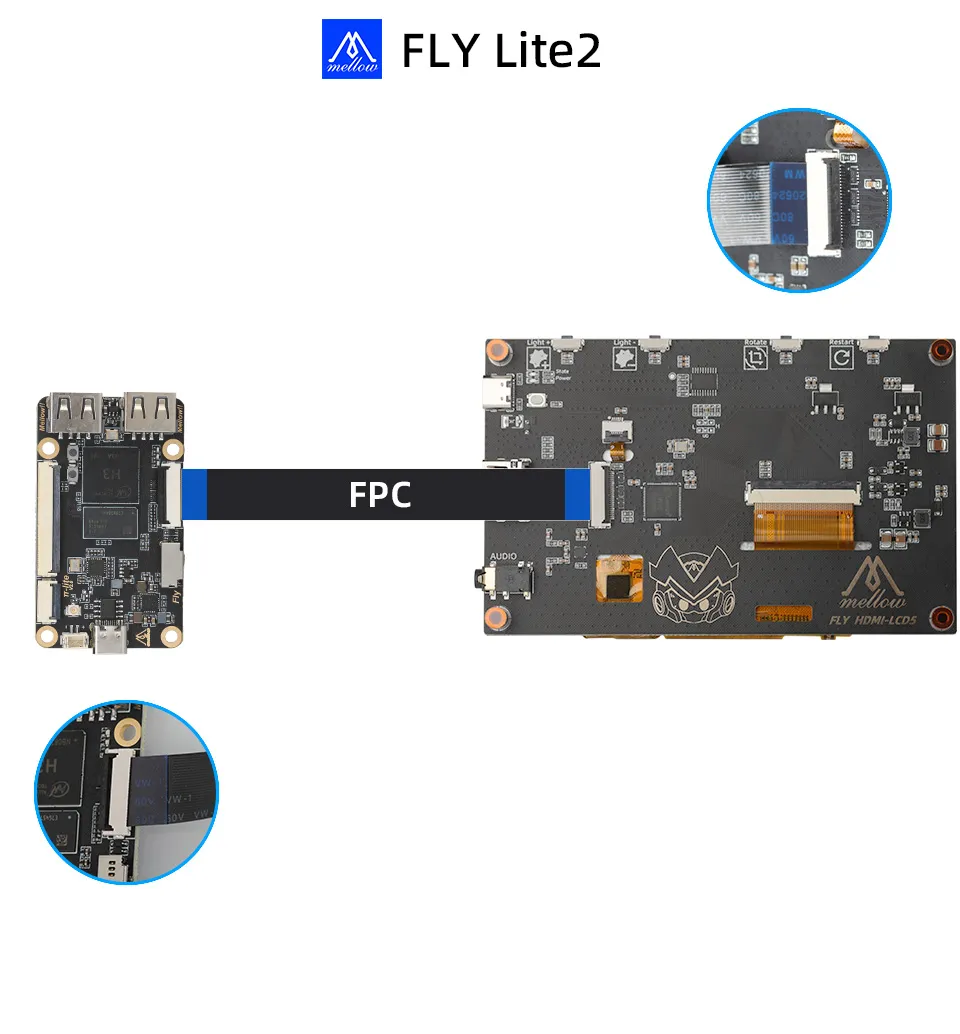

HDMI Wiring

HDMI Wiring

1. FLY-HDMI Screen Wiring

---

Screen Configuration

FLYOS-FAST System - Screen Configuration

FLYOS-FAST System - Screen Configuration

1. Open the device IP address in a browser, for example: http://192.168.6.110/

   fluidd as shown in the picture: uncheck -> filter hidden files and folders.

   mainsail as shown in the picture: check -> show hidden files.

2. At this point, you can see the .flyos-config folder, entering this folder will have the sys-config.conf file.

3. Open the sys-config.conf file, modify the configuration items that need to be modified, save -> close to complete.

warning

• Configure HDMI screen as: hdmi, please note that there must be no space after =!!!
• Configure resistive screen as: fly-tft-v2-r, please note that there must be no space after =!!!, please confirm that the switch on the back of the screen is set to Resi
• Configure capacitive screen as: fly-tft-v2-c, please note that there must be no space after =!!!, please confirm that the switch on the back of the screen is set to Cap
• Configure klipper_screen as: 1, please note that there must be no space after =!!!
• Note: The format of configuration items in the sys-config.conf file is key=value, do not modify the format arbitrarily!!! Otherwise, the configuration will not take effect!!!

4. After modifying and saving, reboot the system to take effect.

FLYOS-Armbian System - Screen Configuration

FLYOS-Armbian System - Screen Configuration

info

• Connect the host computer to WiFi, and after obtaining the host computer's IP, enter IP+:9999 in the browser to access FLY TOOLS and perform screen-related configurations
• For example, if your host computer's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser

1. Open FLY TOOLS, follow the steps shown in the picture, enable Klipper Screen, select the screen model, click the pink button at the lower right corner save configuration, then reboot the host computer to take effect!

warning

• Select resistive screen: fly-tft-v2-r, please confirm that the switch on the back of the screen is set to Resi
• Select capacitive screen: fly-tft-v2-c, please confirm that the switch on the back of the screen is set to Cap

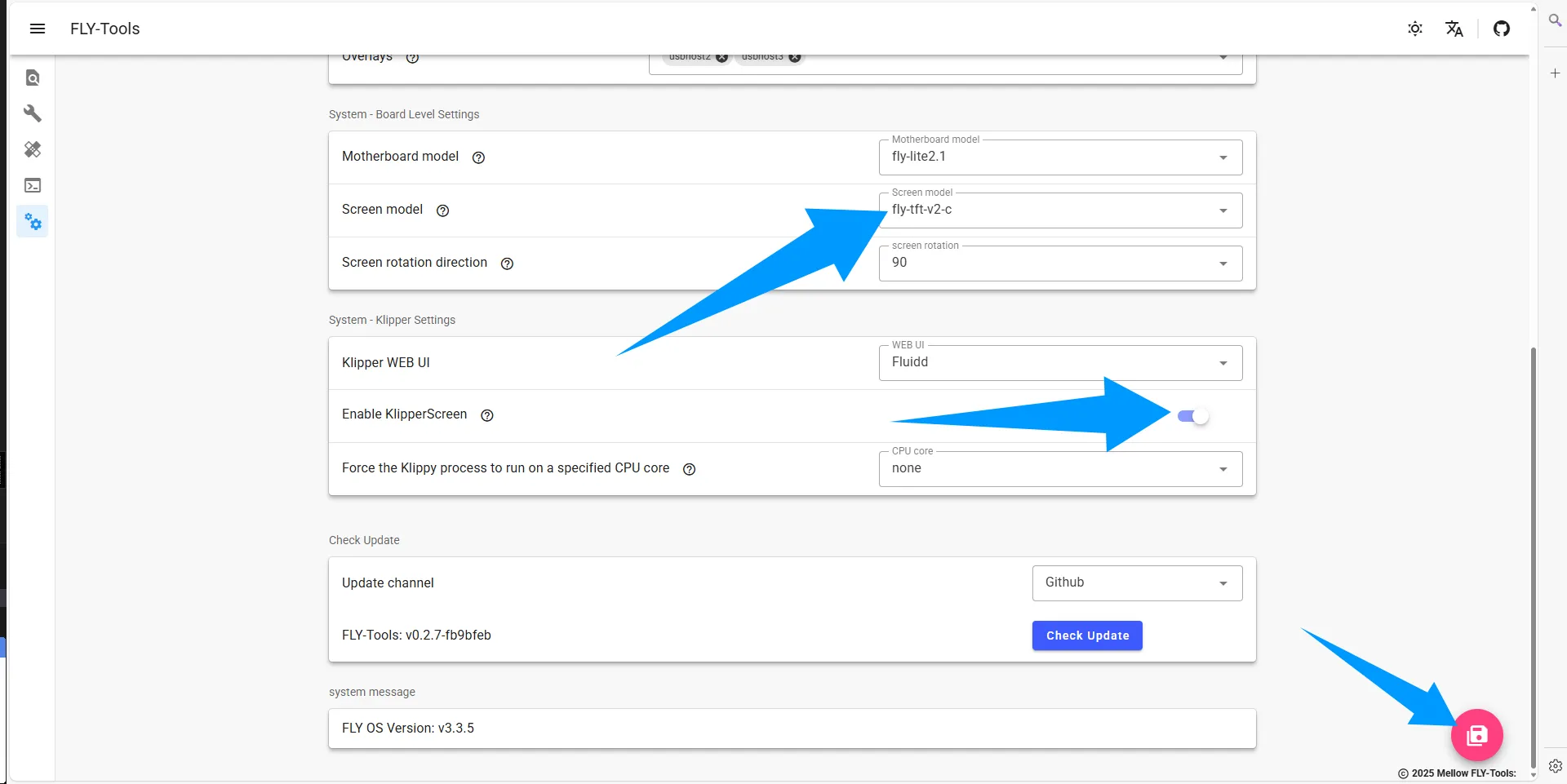

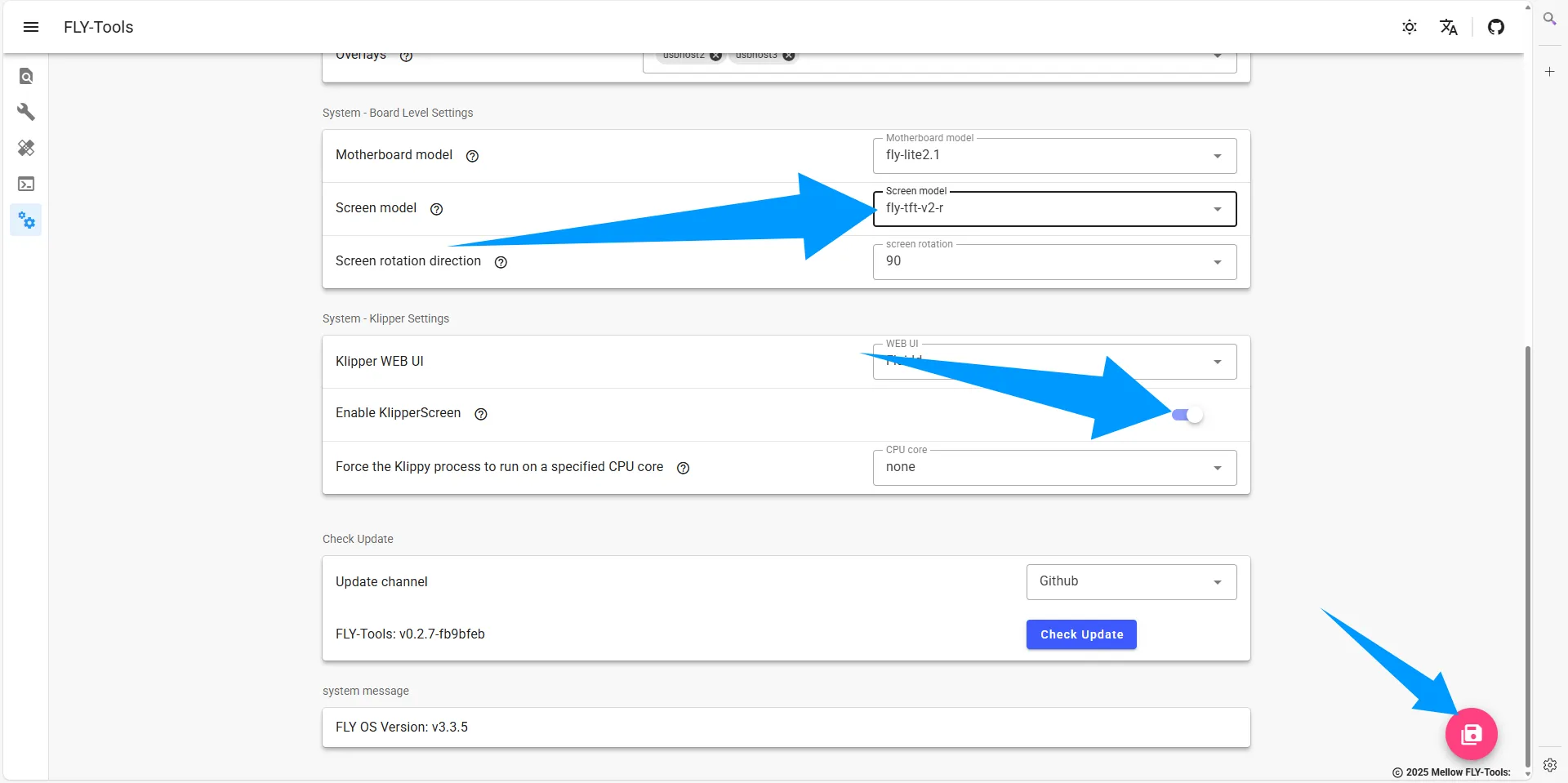

Resistive Screen:	Capacitive Screen:
HDMI Screen:

2. After saving the configuration, reboot the host computer to take effect.

---
