Screen Wiring and Configuration

Screen Wiring

TFT Resistive Screen Wiring

TFT Resistive Screen Wiring

tip

• The TFT screen package includes two FPC cables, one is 14P (narrow) and the other is 16P (wide)
• Please use the 14P (narrow) cable for resistive screens!!!

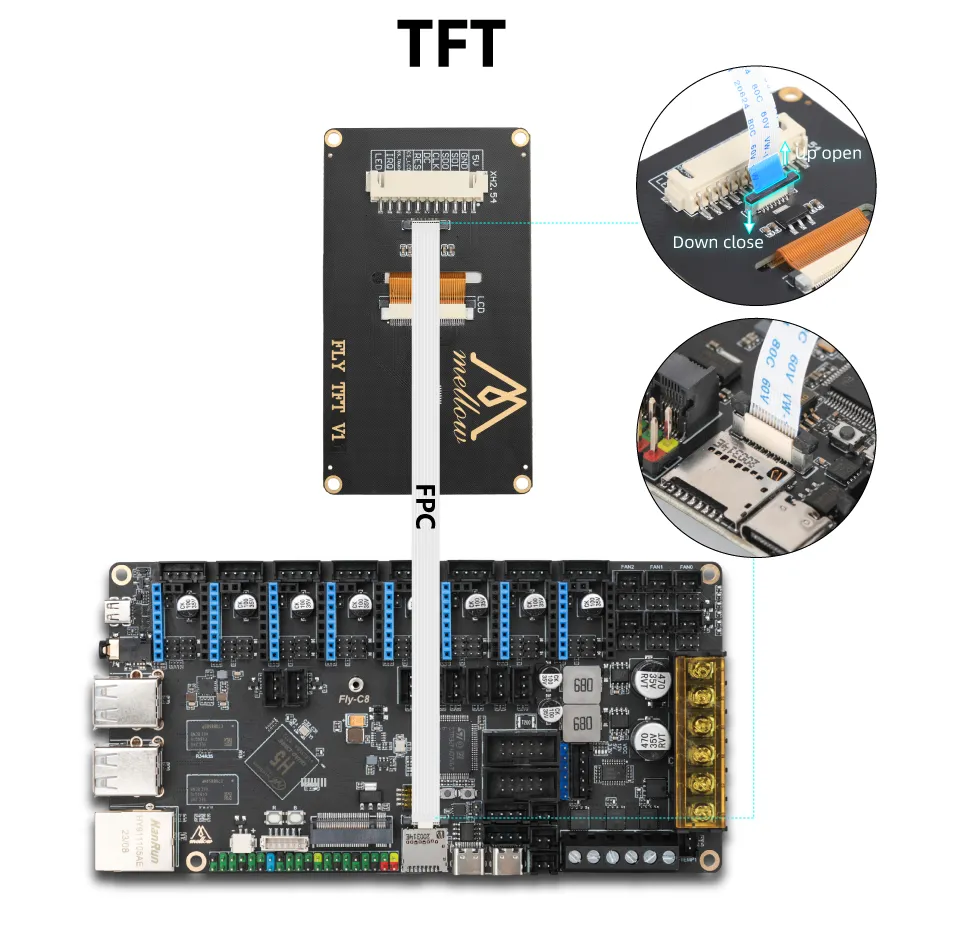

1. FLY-C8 TFT resistive screen wiring

TFT-V1 wiring reference

TFT-V2 wiring reference Updating

C8 V1-V1.2 Using G2T Wiring

TFT V2 Wiring

tip

• C8 V1-V1.2 does not support TFT V2 capacitive screen wiring and must be used with G2T
• The TFT screen package includes two FPC cables, one is 14P (narrow) and the other is 16P (wide)
• For TFT V2 G2T screens, please use the 16P (wide) cable!!!

1. Install G2T and TFT screen

Using resistive screen

Using capacitive screen

C8 V1.3 Version

TFT V2 Wiring

tip

• The TFT screen package includes two FPC cables, one is 14P (narrow) and the other is 16P (wide)
• For TFT V2 G2T screens, please use the 16P (wide) cable!!!

1. Install G2T and TFT screen
   • Using TFT screen


HDMI Wiring

HDMI Wiring

1. FLY-HDMI-LCD5 screen wiring

Wiring method 1

Wiring method 2

---

Screen Configuration

FLYOS-FAST System - Screen Configuration

FLYOS-FAST System - Screen Configuration

1. Open the device IP address in a browser, for example: http://192.168.6.110/

   In fluidd, uncheck the option as shown: Filter hidden files and folders.

   In mainsail, check the option as shown: Show hidden files.

2. You can now see the .flyos-config folder. Enter this folder to find the sys-config.conf file.

3. Open the sys-config.conf file, modify the required configuration items, then Save -> Close.

warning

• For HDMI screen, set to: hdmi. Note that there should be no space after =
• For resistive screen, set to: fly-tft-v1 or fly-tft-v2-r. Note that there should be no space after =, and ensure the DIP switch on the back of the screen is set to Resi
• For capacitive screen, set to: fly-tft-v2-c. Note that there should be no space after =, and ensure the DIP switch on the back of the screen is set to Cap
• For klipper_screen, set to: 1. Note that there should be no space after =
• Note: The configuration format in the sys-config.conf file is key=value. Do not modify this format arbitrarily!!! Otherwise, the configuration will not take effect!!!

4. After making changes and saving, Restart the system for the changes to take effect.

FLYOS-Armbian System - Screen Configuration

FLYOS-Armbian System - Screen Configuration

info

• Connect the host computer to WiFi and obtain its IP address. Enter IP+:9999 in your browser to access FLY TOOLS for screen configuration
• For example, if your host computer's IP address is 192.168.6.110, enter 192.168.6.110:9999 in the browser

1. Open FLY TOOLS and follow the steps shown in the image below: Enable Klipper Screen, Select screen model, click the pink button in the lower right corner Save Configuration, then restart the host computer to apply changes!

warning

• For resistive screen, select: fly-tft-v1 or fly-tft-v2-r, and confirm the DIP switch on the back of the screen is set to Resi
• For capacitive screen, select: fly-tft-v2-c, and confirm the DIP switch on the back of the screen is set to Cap
• For HDMI screen, select: hdmi

Resistive screen:	Capacitive screen, requires G2T:
HDMI screen:

2. After saving the configuration, restart the host computer to apply changes!

---
