Screen wiring and configuration

Screen wiring

TFT resistive screen wiring

TFT resistive screen wiring

tip

• The packaging of the TFT screen will include two FPC cables, one is 14P (narrow), and the other is 16P (wide)
• Please use 14P (narrow) for the resistive screen！！！

1. FLY-C8 TFT resistive screen wiring

C8 V1-V1.2 using G2T wiring

TFT V2 wiring

tip

• C8 V1-V1.2 does not support TFT V2 capacitive screen wiring and needs to be used with G2T
• The packaging of the TFT screen will include two FPC cables, one is 14P (narrow), and the other is 16P (wide)
• Please use 16P (wide) for the G2T screen with TFT V2！！！

1. Install G2T and TFT screen

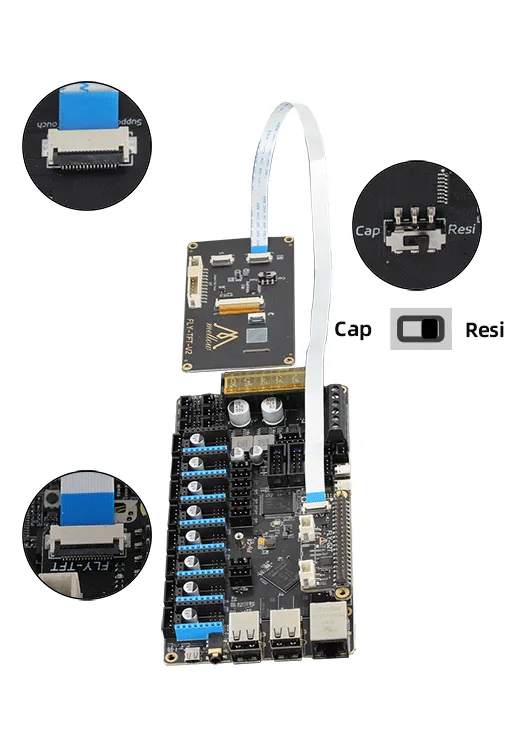

Using resistive screen

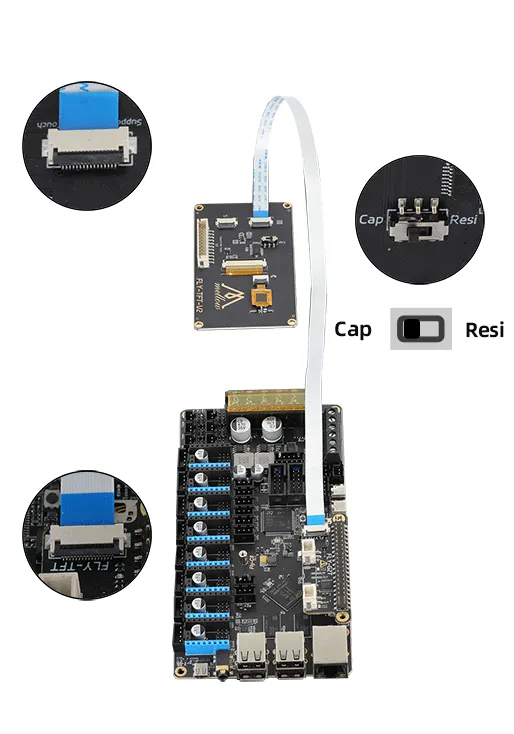

Using capacitive screen

C8 V1.3 version

TFT V2 wiring

tip

• The packaging of the TFT screen will include two FPC cables, one is 14P (narrow), and the other is 16P (wide)
• Please use 16P (wide) for the G2T screen with TFT V2！！！

1. Install G2T and TFT screen
   • Using TFT screen


HDMI wiring

HDMI wiring

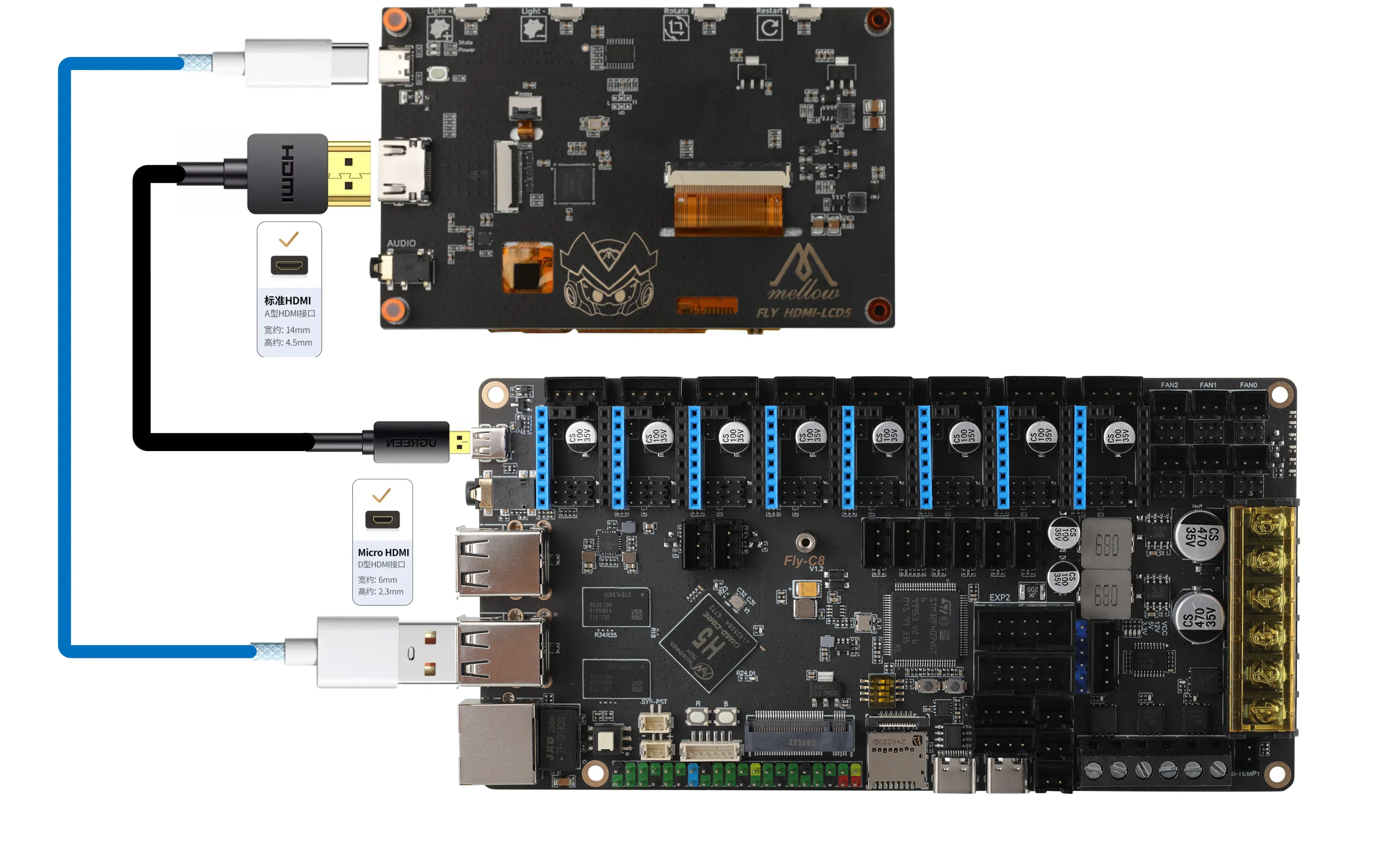

1. FLY-HDMI-LCD5 screen wiring

Wiring method one

Wiring method two

---

Screen configuration

FLYOS-FAST system - screen configuration

FLYOS-FAST system - screen configuration

1. Open the device's IP address in a browser, for example: http://192.168.6.110/

   fluidd as shown in the figure: uncheck -> filter hidden files and folders.

   mainsail as shown in the figure: check -> show hidden files.

2. At this point, you can see the .flyos-config folder, entering this folder will have the sys-config.conf file.

3. Open the sys-config.conf file, modify the configuration items you need to change, then save -> close it.

warning

• Configure HDMI screen as: hdmi, please note that there must not be any space after =!!
• Configure resistive screen as: fly-tft-v1 or fly-tft-v2-r, please note that there must not be any space after =!!, please confirm that the switch on the back of the screen is set to Resi
• Configure capacitive screen as: fly-tft-v2-c, please note that there must not be any space after =!!, please confirm that the switch on the back of the screen is set to Cap
• Configure klipper_screen as: 1, please note that there must not be any space after =!!
• Note: The format of the configuration items in the sys-config.conf file is key=value, do not modify the format私自!! Otherwise, the configuration will not take effect!!

4. After modifying and saving, restart the system to take effect.

FLYOS-Armbian system - screen configuration

FLYOS-Armbian system - screen configuration

info

• Connect the host computer to WiFi, and after obtaining the host computer's IP, enter IP+:9999 in the browser to access FLY TOOLS and perform screen-related configurations
• For example, if your host computer's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser

1. Open FLY TOOLS, follow the steps shown in the figure below, enable Klipper Screen, select the screen model, click the pink button at the bottom right to save the configuration, then restart the host computer to take effect!

warning

• Choose fly-tft-v1 or fly-tft-v2-r for resistive screen, please confirm that the switch on the back of the screen is set to Resi
• Choose fly-tft-v2-c for capacitive screen, please confirm that the switch on the back of the screen is set to Cap
• Choose hdmi for HDMI screen

Resistive screen:	Capacitive screen, requires G2T:
HDMI screen::

2. After saving the configuration, restart the host computer to take effect!

---
