Connect to the Host via SSH
- This document applies only to FLY host devices. Other devices are for reference only.
- For compiling and flashing firmware, refer to the network connection tutorial, not the serial port connection tutorial.
- Connect to the device via serial port or Wi-Fi
- Prepare MobaXterm_Personal or other SSH terminal tool in advance
- Ensure the SD card or M2WE has a system corresponding to the host burned
- If the host fails to start properly, remove peripherals such as drivers, limit switches, and fans!!!
- Finally, connect via network to SSH for convenient firmware compilation!!
- For firmware compilation, refer to the tutorial on connecting to the host via Wi-Fi or Ethernet
Power Supply
-
Connect the FLY host to the computer using a
USB Type-Ccable -
Ensure the
USB Type-Ccable supports data transfer! -
After the system starts, the indicator light will flash rapidly!!
-
Flashing indicates the system has started
- FLY-C8
- FLY-Pi v2
- FLY-Pi(π)
- FLY-Gemini
- FLY-MiniPad
- FLY-Pi Lite2
- FLY-C8
Loading...- FLY-Pi v2
Loading...- FLY-Pi
Loading...- FLY-Gemini
Loading...- FLY-MiniPad
Loading...- FLY-Pi Lite2
Loading...
- Connect via Web Page
- Serial Connection
- Network Connection
Connecting to Host Machine SSH via Serial Port Using Web Page
-
Connect the host machine to the computer via USB, then click
Device Connectbelow. -
If successful,
USB Serialor a similar device will be displayed. -
Select the corresponding device, then click
Connect. -
A prompt will appear upon successful connection.
-
FlyOS-FAST default username is root, default password is mellow.
-
Starting from version
V1.3.2, the FAST system automatically logs in via serial connection by double-clicking or pressing Enter twice consecutively. -
The content shown in the image below will appear after pressing Enter.
Loading...
- The interface below indicates successful login.
- The FAST system updated the following style after version V1.3.0.
Connecting to Host Machine SSH via Serial Port
- If the host machine is properly connected to the computer, open Device Manager to see the
CH340port.
- Open
MobaXtermand configure as follows. Select the port previously seen in Device Manager.
- Please note that
Speed(bps)*must be set to115200.
- If everything is normal, the boot screen will appear.
- Wait a moment; the system is booted when this screen appears.
If after a few minutes, the screen shows nothing like the image below, press Enter a few times.
-
FlyOS-FAST default username is root, default password is mellow.
-
Starting from version
V1.3.2, the FAST system automatically logs in via serial connection by double-clicking or pressing Enter twice consecutively. -
The content shown in the image below will appear after pressing Enter.
Loading...

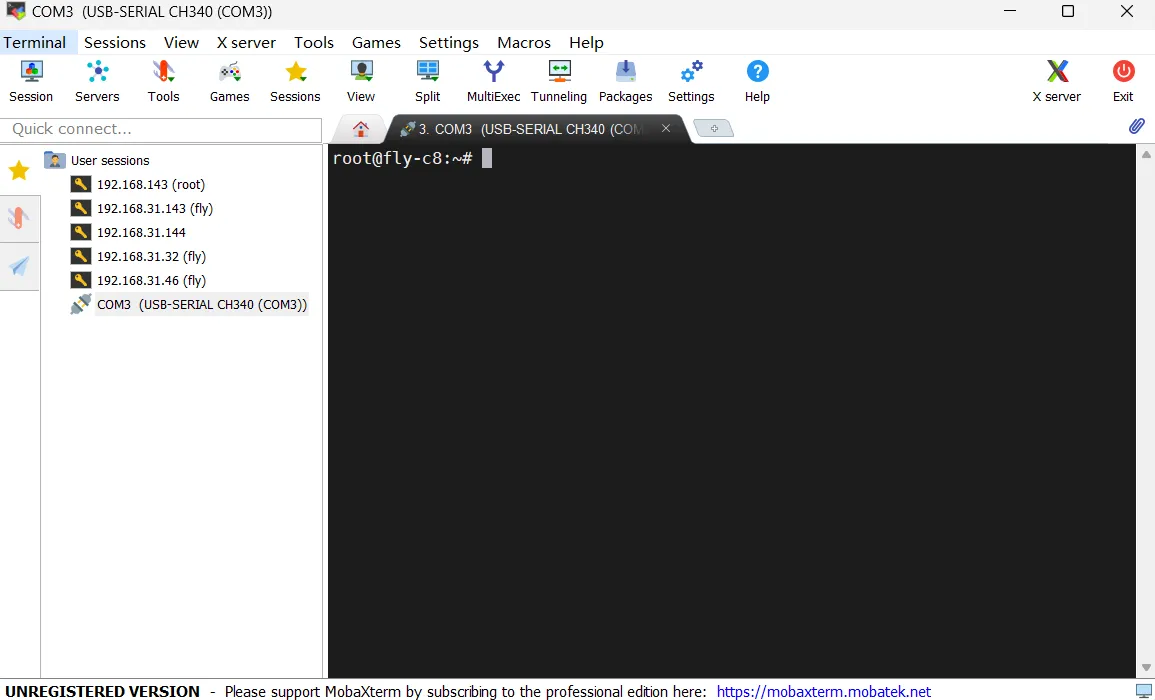

- The interface below indicates successful login.
- The FAST system updated the following style after version V1.3.0.

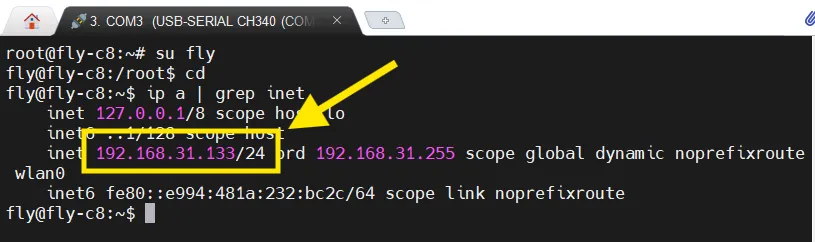

- To view the device
IP, ensure a network cable or Wi-Fi is connected. Connect WIFI
Connecting to Host Machine SSH via Network IP
- Log into the router admin panel that the host machine is connected to, unless you know the host machine's IP address.
- Ensure you know the host machine's username and password.
- FlyOS-FAST default username is root, default password is mellow.
- If the motherboard has started and is connected to the network, you can connect to SSH using the following method.
- Open MobaXterm and configure as follows. Fill in the IP viewed previously, or check it in the router admin panel.
Note: Step 4 here requires entering the host machine's username.
- The first time you connect, this window will pop up. Click
Accept.

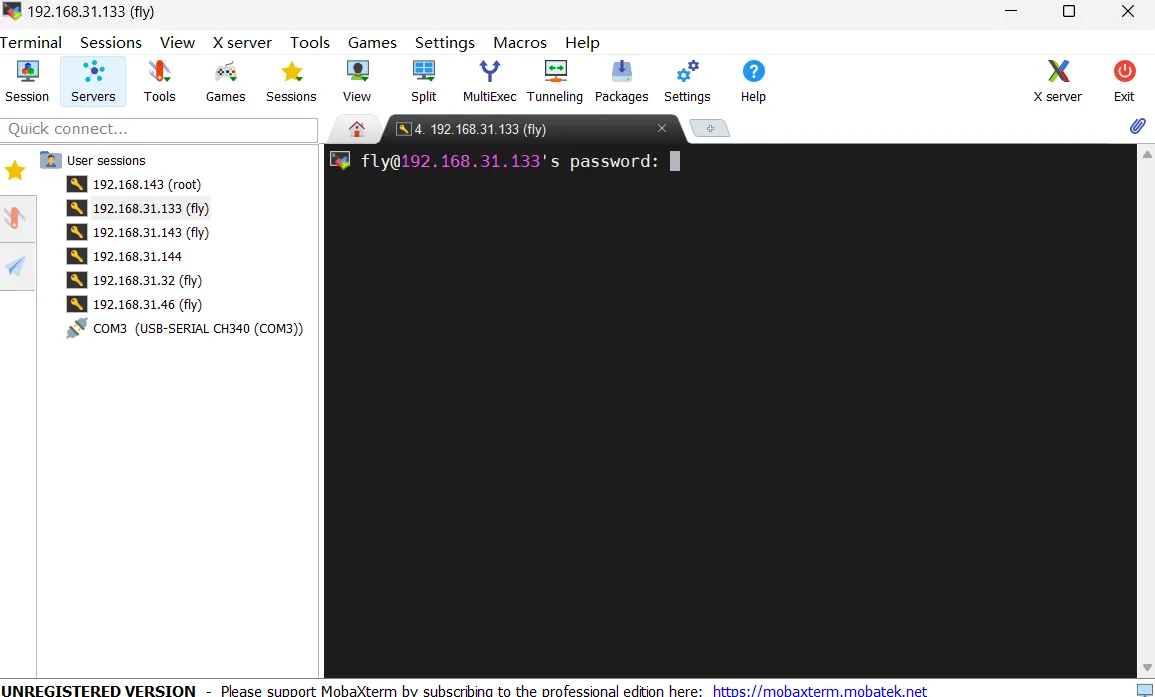

- You will be prompted to enter the password. Enter the host machine's password and press Enter.
Note: The password entered here is invisible. Just press Enter after typing.
- For the FLY-FAST system, username is
root, password ismellow.

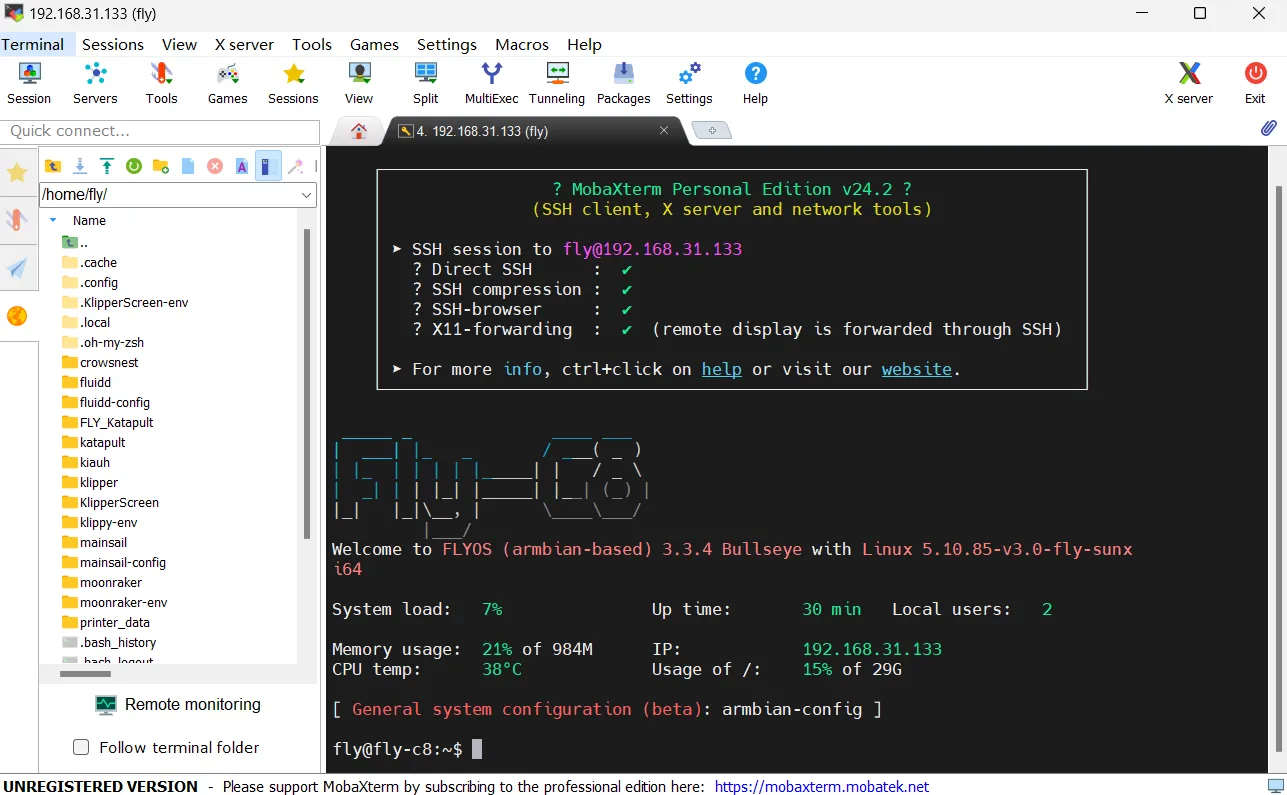

- The interface below indicates successful login.
- The FAST system updated the following style after version V1.3.0.
- Login successful.
