ERCF

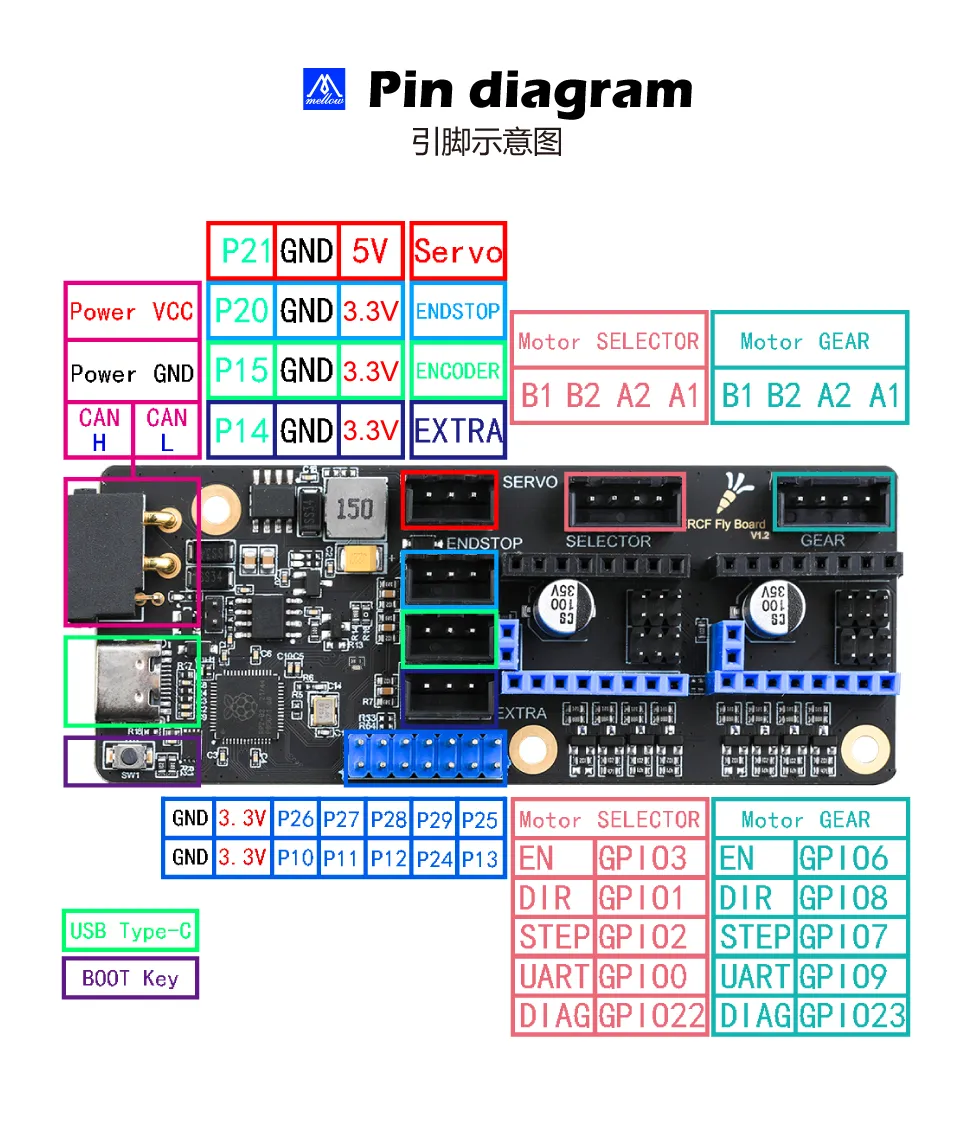

Reference Wiring for Motherboard

Note

Due to the high resolution of the images, they may not be clear when browsing online. Please place your mouse cursor over the wiring diagram, right-click, and select "Save image as" to save the image to your desktop for clearer viewing!!
