Screen Wiring and Configuration

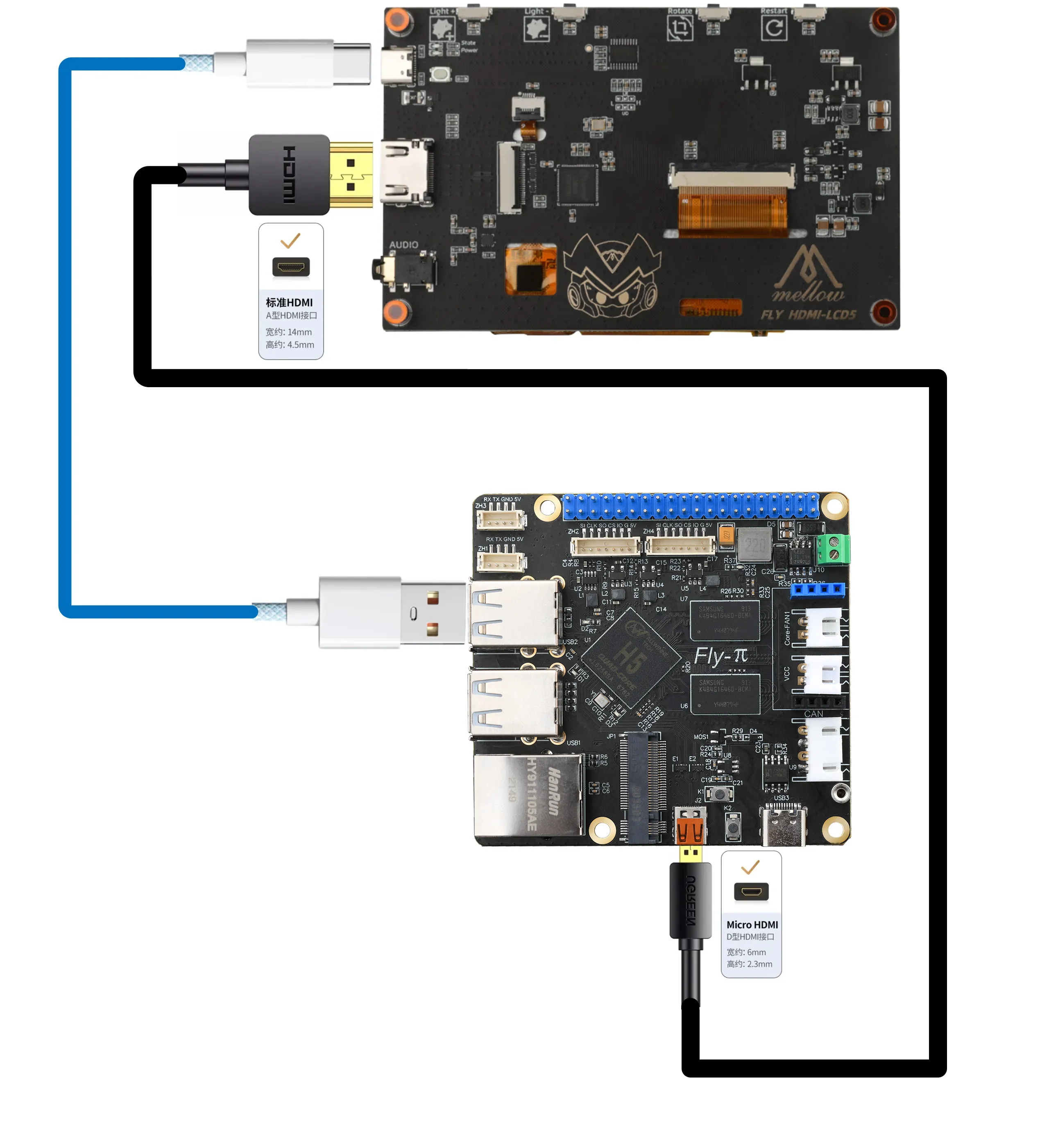

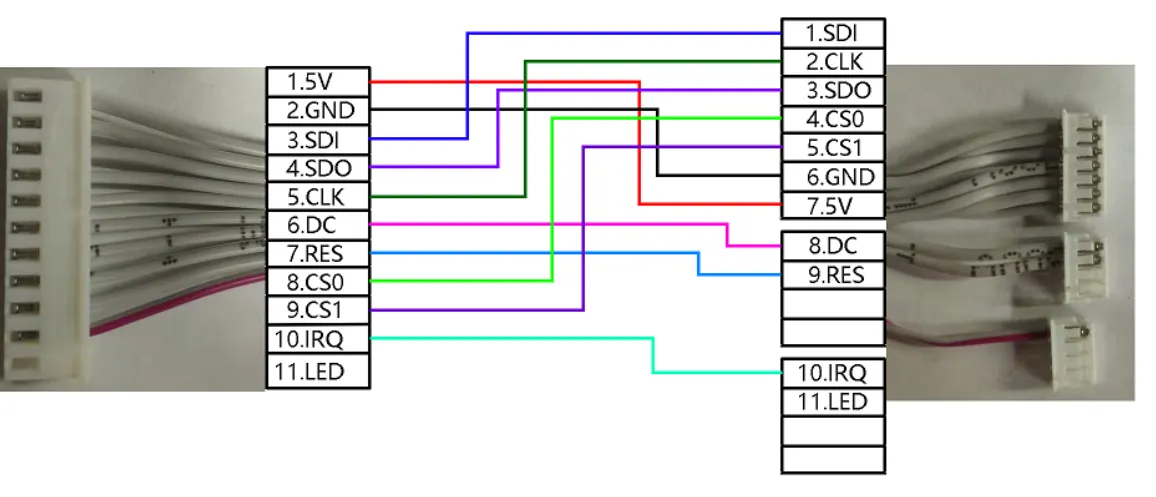

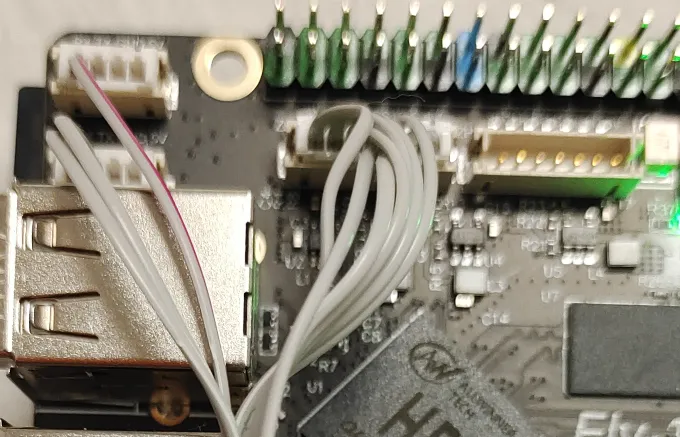

Screen Wiring

tip

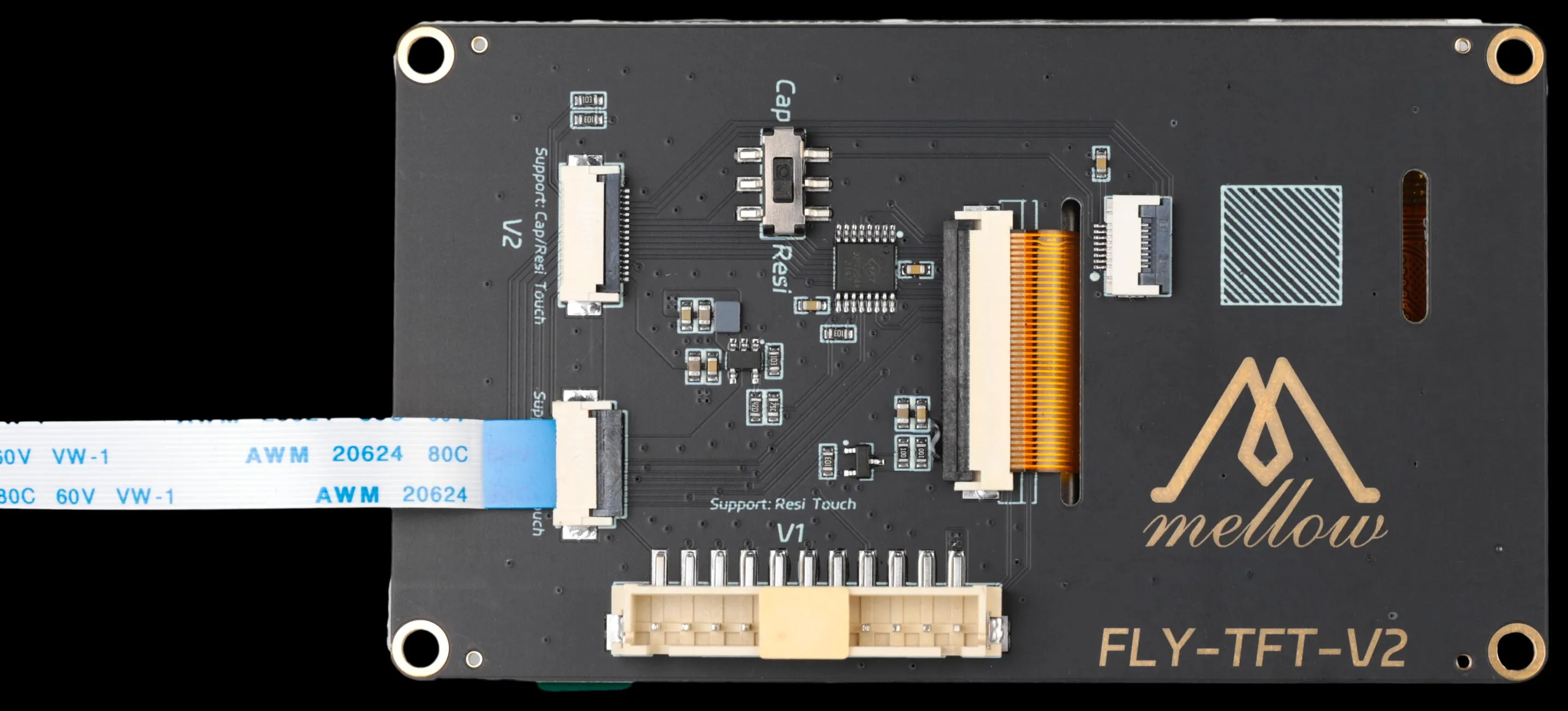

The TFT screen package includes two FPC cables: one is 14P (narrow) and the other is 16P (wide)
Please use the 14P (narrow) for the resistive screen!!!

Open the device IP address in a browser, for example: http://192.168.6.110/

fluidd: as shown below: Uncheck -> Filter hidden files and folders.
mainsail: as shown below: Check -> Show hidden files.
You can now see the .flyos-config folder. Enter this folder and you will find a sys-config.conf file.

Open the sys-config.conf file, modify the required configuration items, then Save -> Close.

warning

HDMI screen: configure as hdmi, note that there must be no space after =!
Resistive screen: configure as fly-tft-v1, note that there must be no space after =, and ensure the screen's DIP switch is set to Resi
klipper_screen: configure as 1, note that there must be no space after =!
Note: the format of the configuration items in the sys-config.conf file is key=value. Do not modify the format!!! Otherwise, the configuration will not take effect!!!

info

After connecting the host computer to WiFi and obtaining its IP address, enter IP+:9999 in the browser to access FLY TOOLS for screen-related configurations
For example, if the host computer's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser

Open FLY TOOLS. As shown in the figure below, enable Klipper Screen, select the screen model, click the pink button in the bottom-right corner Save Configuration, then restart the host computer to take effect!

warning

For resistive screen, select: fly-tft-v1, and ensure the screen's DIP switch is set to Resi
