Onboard 5V Fan Header

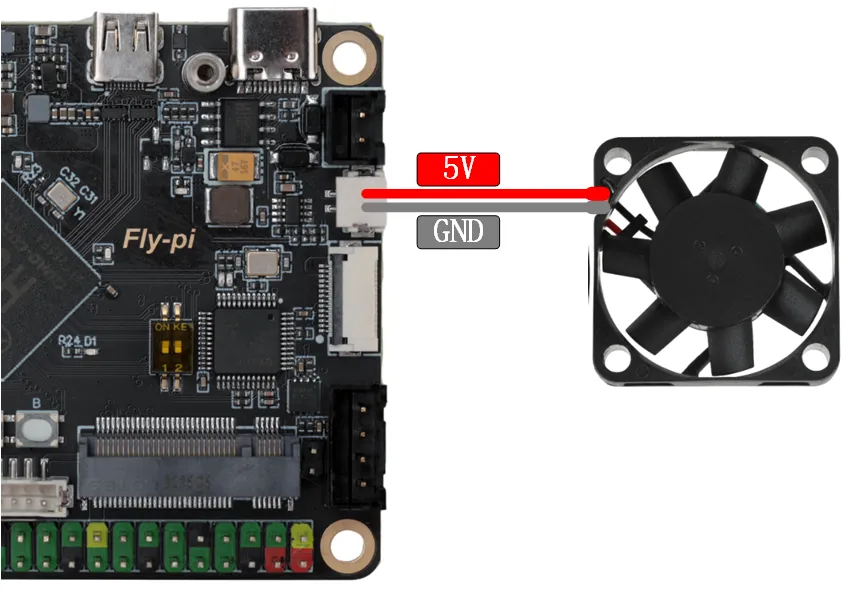

The Pi-V2 board is equipped with a controllable 5V interface for main control cooling, and the wiring method is as follows:

Commands to execute via SSH before adding configuration:

wget https://cdn.mellow.klipper.cn/mirrors/fly/linux-dtb-current-fly-sunxi64_3.3.5_arm64.deb && sudo dpkg -i linux-dtb-current-fly-sunxi64_3.3.5_arm64.deb

Reference Configuration

[mcu host]                      # FlyOS has already generated the linux MCU for you by default, just define it to use
serial: /tmp/klipper_host_mcu

[temperature_sensor FLY-π]      # Host machine temperature
sensor_type: temperature_host


[temperature_fan core_fan]      # Host machine cooling fan
pin: host:gpiochip1/gpio103     # Host machine fan pin
max_power: 1.0
sensor_type: temperature_host   # Set to the temperature of the host machine main controller
control:watermark               # Control method
target_temp: 48                 # Temperature at which the host machine cooling fan starts
min_temp: 0                     # Lowest temperature, an error will occur below this value
max_temp: 90                    # Highest temperature, an error will occur above this value
off_below: 0.10
kick_start_time: 0.50
max_speed: 0.8                  # Maximum speed, 80% of full power operation
min_speed: 0.3                  # Minimum speed, 30% of full power operation
