Introduction

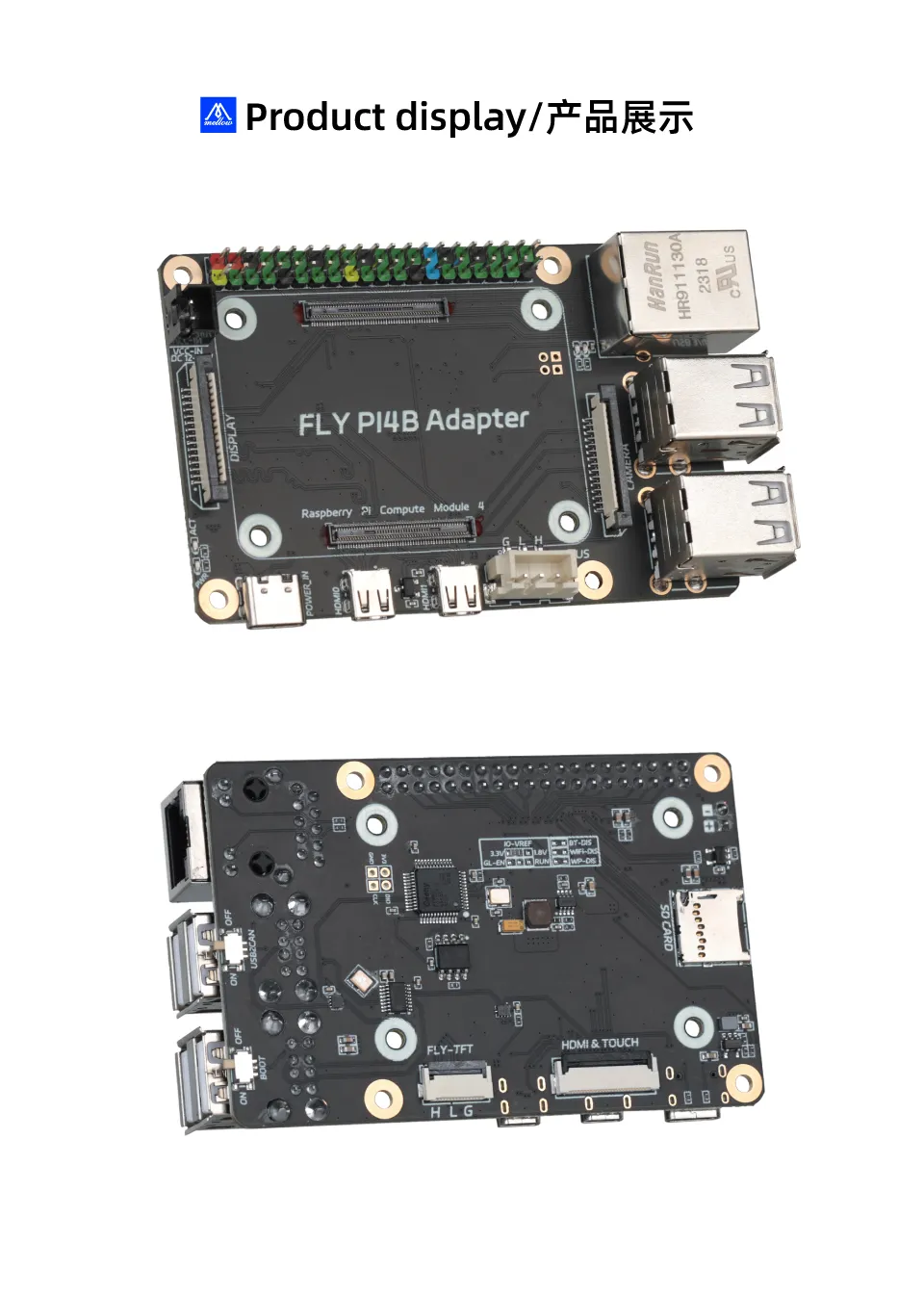

Fly-CM4 is fully compatible with Raspberry Pi 3B and 4B and is specifically enhanced for the Raspberry Pi CM4. This expansion board provides a comprehensive set of features optimized for 3D printers. The 12-24V DC power supply ensures stable power delivery, which is crucial for precise control and continuous operation of 3D printers. It supports FPC connection for FLY-TFT and Fly-HDMI screens, offering a more convenient wiring method. A CAN port is provided, allowing the host computer to directly connect to the slave computer via CAN, a currently popular approach.

Features

Supports Raspberry Pi CM4 core board
Supports 12V-24V DC power supply
Onboard UTOC module
Supports TFT and HDMI single-cable connection
Supports DSI/SPI screen interface
Supports CSI/USB camera interface
40PIN expansion interface, compatible with Raspberry Pi
