Screen Wiring and Configuration

Screen Wiring

TFT Resistive Screen Wiring

TFT Resistive Screen Wiring

tip

• The packaging of the TFT screen will include two FPC cables, one is 14P (narrow), and the other is 16P (wide)
• Please use 14P (narrow) for the resistive screen!!!

1. FLY-Gemini TFT Resistive Screen Wiring

TFT V1 Using Cable Wiring

TFT Resistive Screen Wiring

tip

• Pay attention to the cable order!

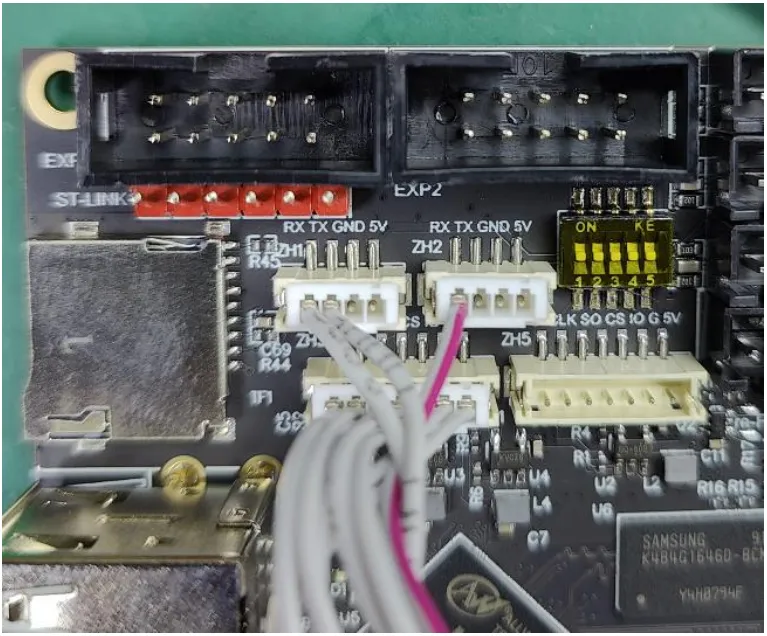

1. Install the TFT screen

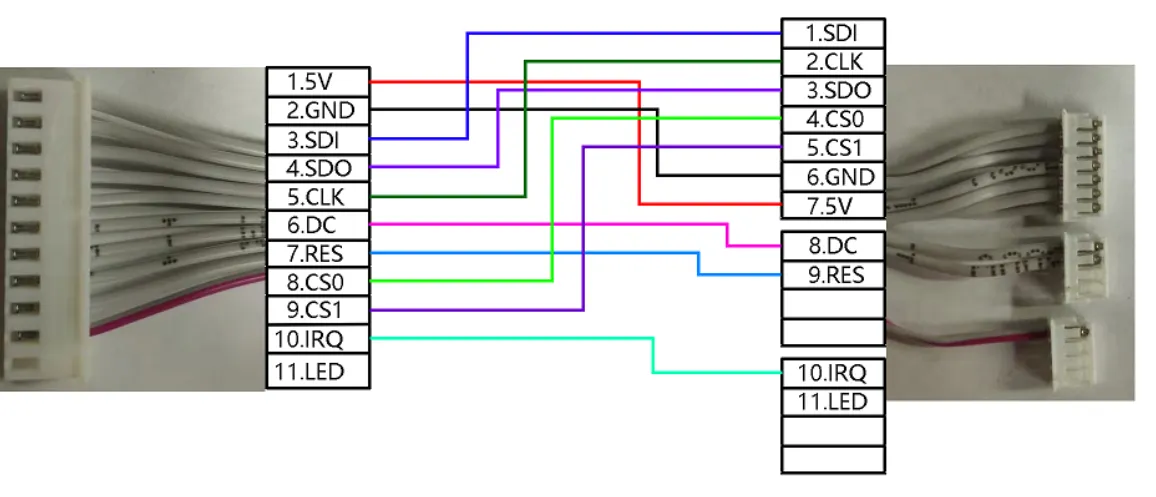

Cable order

Connection method

HDMI Wiring

HDMI Wiring

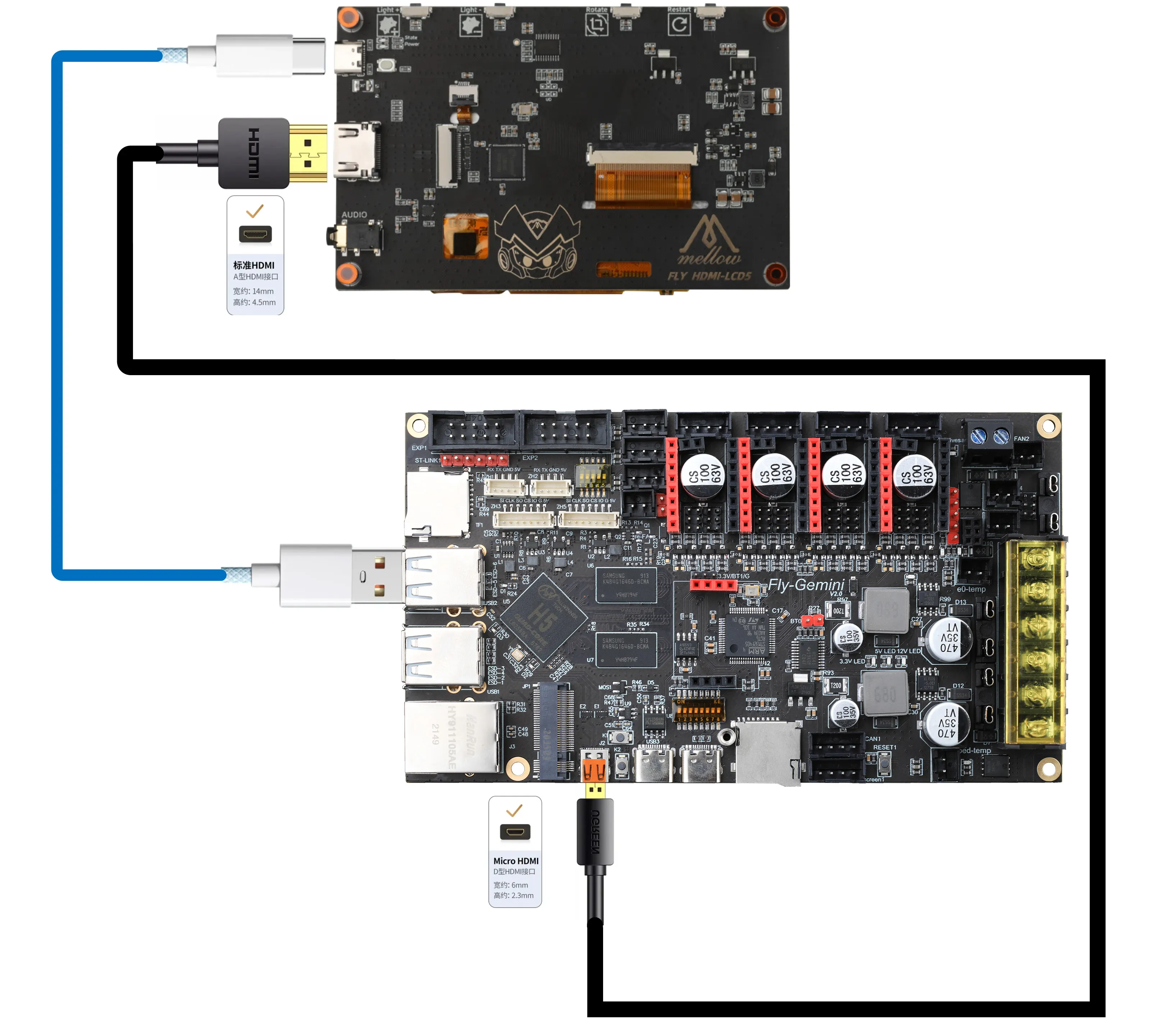

1. FLY-HDMI-LCD5 Screen Wiring

---

Screen Configuration

FLYOS-FAST System - Screen Configuration

FLYOS-FAST System - Screen Configuration

1. Open the device IP address in the browser, for example: http://192.168.6.110/

   fluidd as shown in the figure: uncheck -> filter hidden files and folders.

   mainsail as shown in the figure: check -> show hidden files.

2. At this point, you can see the .flyos-config folder, entering this folder will have the sys-config.conf file.

3. Open the sys-config.conf file, modify the configuration items that need to be modified and save -> close it.

warning

• Configure HDMI screen as: hdmi, please note that there must be no space after =!!
• Configure resistive screen as: fly-tft-v1, please note that there must be no space after =!!, please confirm that the dip switch on the back of the screen is set to Resi
• Configure klipper_screen as: 1, please note that there must be no space after =!!,
• Note: The format of the configuration items in the sys-config.conf file is key=value, do not modify the format私自!! Otherwise, the configuration will not take effect!!

4. After modifying and saving, restart the system to take effect.

FLYOS-Armbian System - Screen Configuration

FLYOS-Armbian System - Screen Configuration

info

• Connect the host computer to WiFi, and after obtaining the host computer's IP, enter IP+:9999 in the browser to access FLY TOOLS, and perform screen-related configurations
• For example, if your host computer's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser

1. Open FLY TOOLS, follow the steps shown in the figure, enable Klipper Screen, select the screen model, click the pink button at the bottom right save configuration, then restart the host computer to take effect!

warning

• Select fly-tft-v1 for resistive screen, please confirm that the dip switch on the back of the screen is set to Resi
• Select hdmi for hdmi screen

Resistive screen:

HDMI screen:

2. After saving the configuration, restart the host computer to take effect.

---
