Wiring Reference

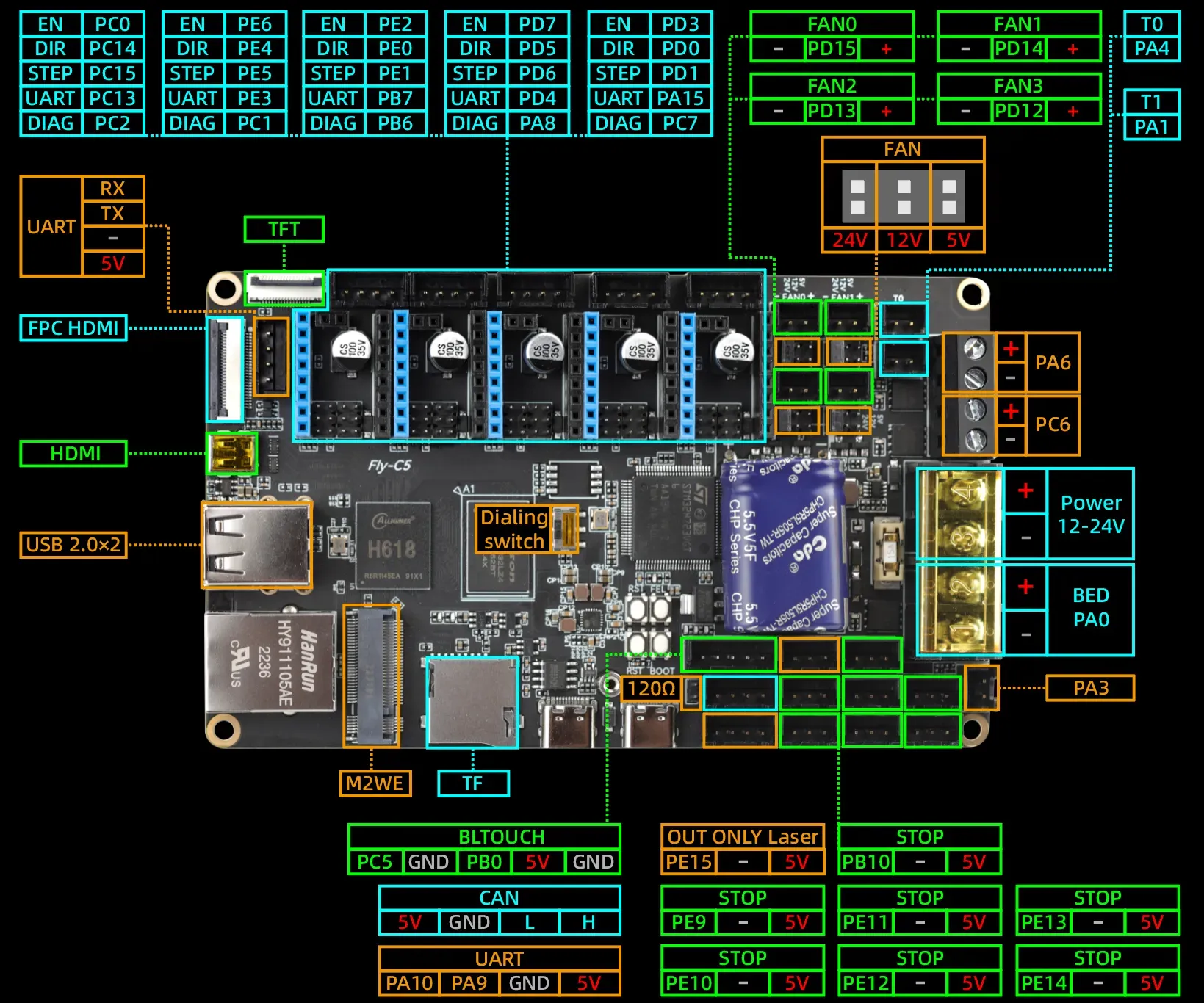

PIN Description

Loading...

Motherboard Driver Jumper

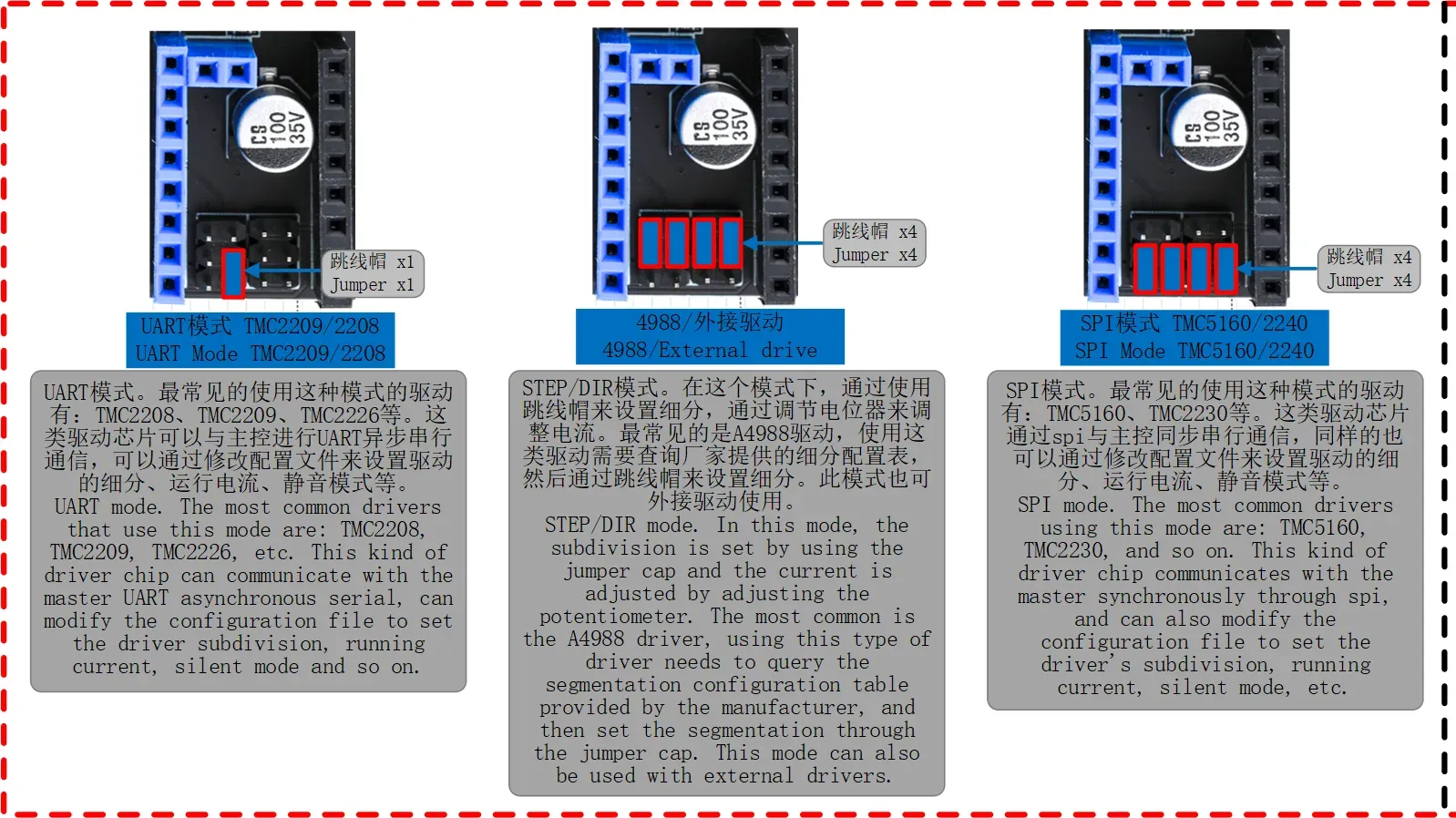

• Instructions for installing drivers and driver jumpers on the FLY motherboard

Loading...

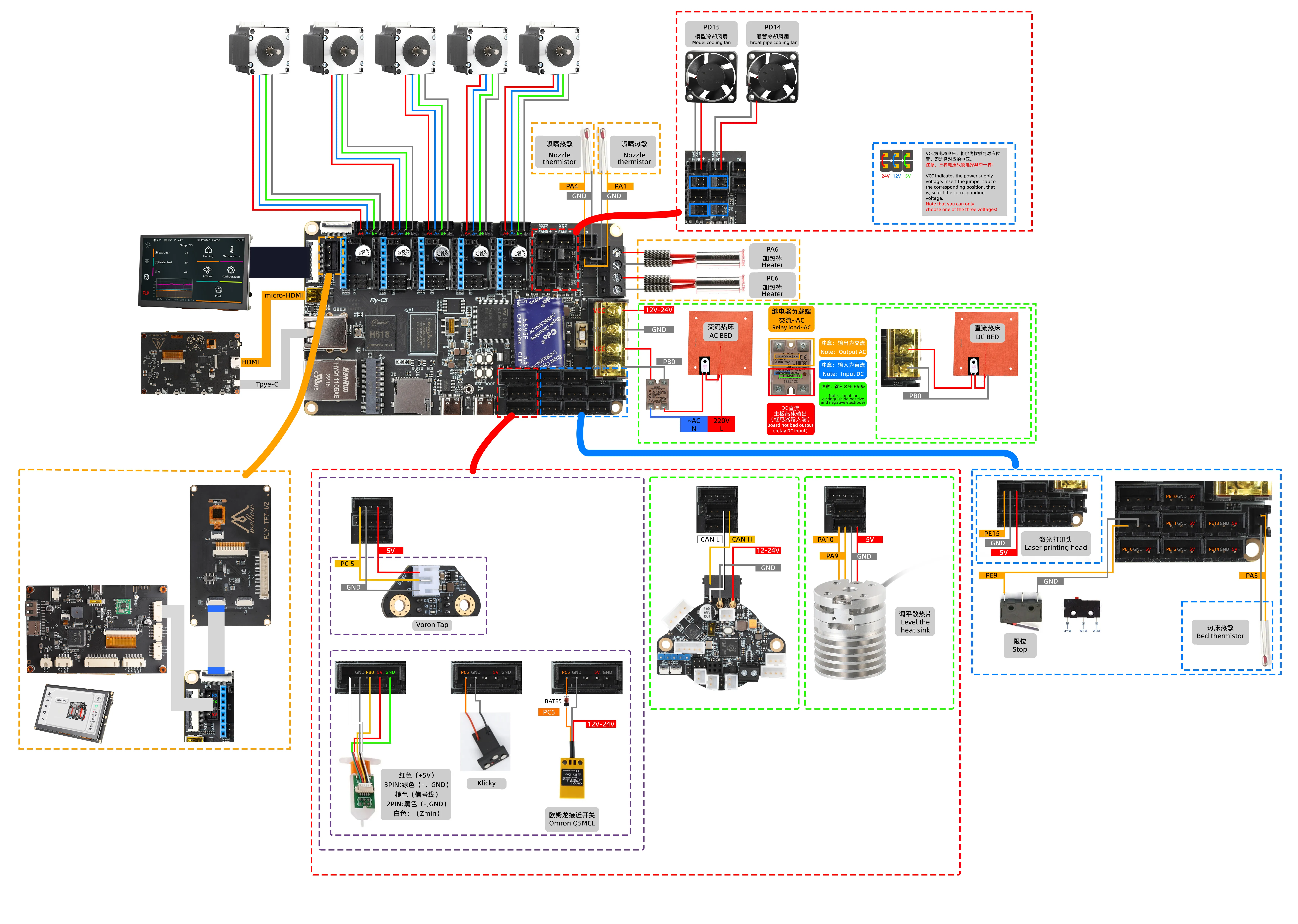

Motherboard Wiring

Warning

Do not use purchased finished three-wire limit switches. Such limit switches may cause a short circuit on the motherboard, damaging the motherboard! Please strictly follow the wiring method shown in the wiring diagram!

Tip

• Due to the high resolution of the wiring diagram, loading may be slow for some users with poor network conditions. Please be patient~~~ (≧∀≦)ゞ
• It is recommended to place the mouse cursor over the wiring diagram, right-click -> Save image as, and save the wiring diagram to your desktop for easier viewing~~~ σ(´∀｀*)

Loading...

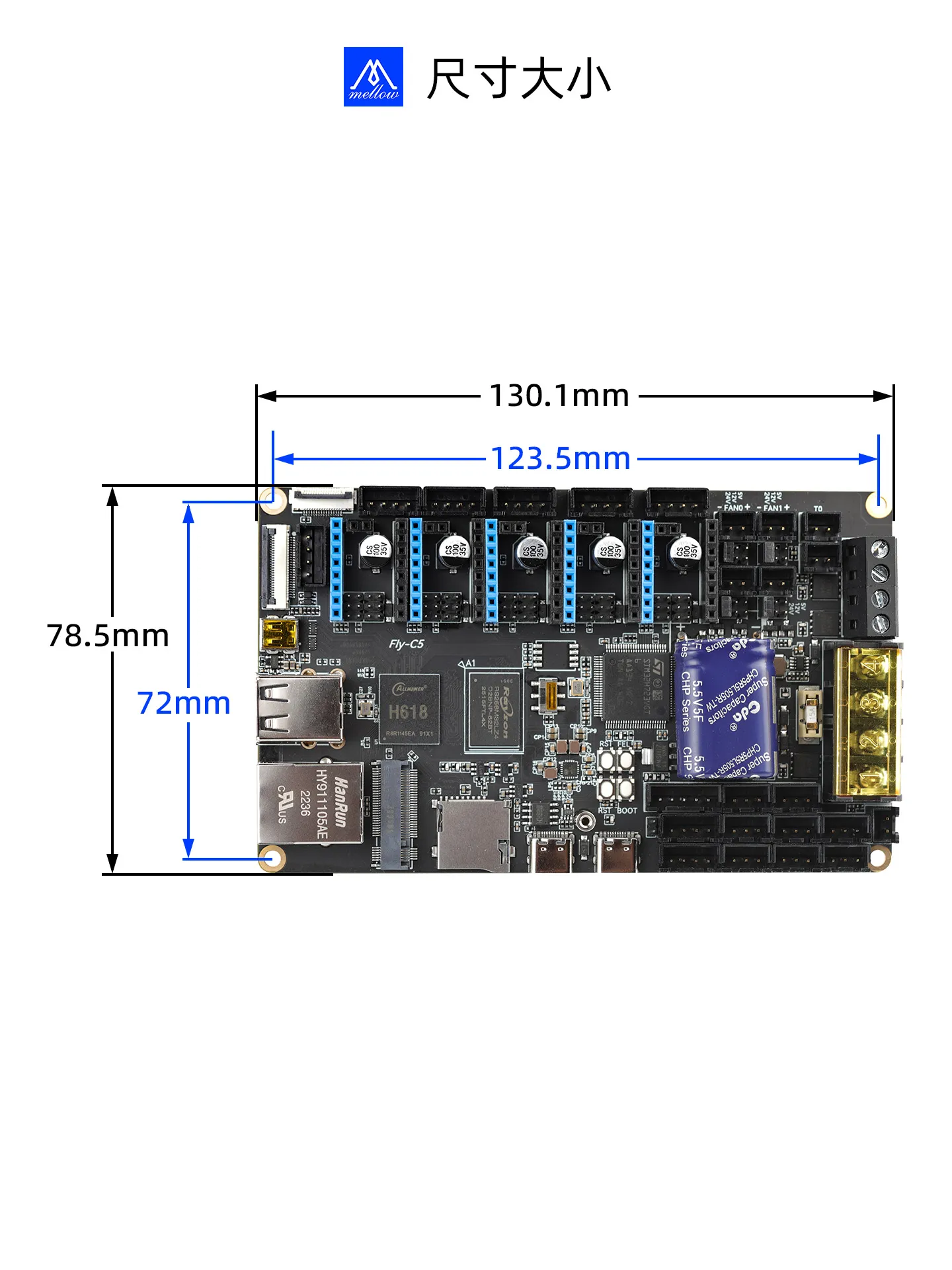

Dimension Diagram

Loading...
