Usage Method

Connection Method​

Note
  • Only the following two connection methods can be used, and you must choose one of them; there are no other connection methods!!!

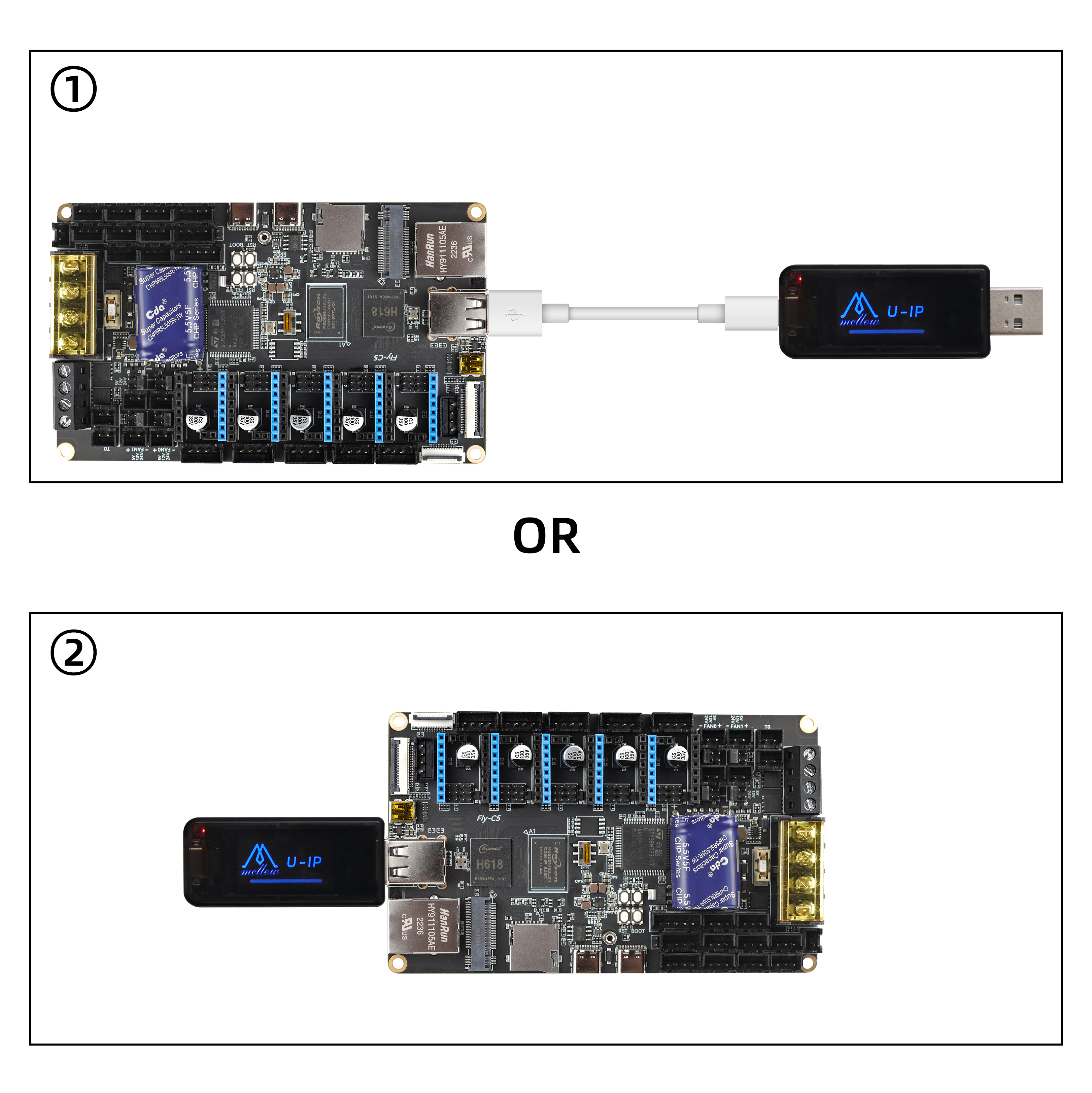

Method One: Connect the USB A (male port) of U-IP to the USB A (female port) of the host computer.

Method Two: Use a data cable (USB to TYPE-C). One end connects to the USB A (female port) of the host computer, and the other end connects to U-IP.

Loading...

Then: After connecting properly, wait normally.

U-IP Configuration Method

Note
  • Apple users are temporarily unsupported.
  • WINDOWS system is required to use this method.
  • Only the following two connection methods can be used, and you must choose one of them; there are no other connection methods!!!

Method One: Connect the USB A (male port) of U-IP to the USB A (female port) of the computer.

Method Two: Use a data cable (USB to TYPE-C). One end connects to the USB A (female port) of the computer, and the other end connects to U-IP.

Loading...

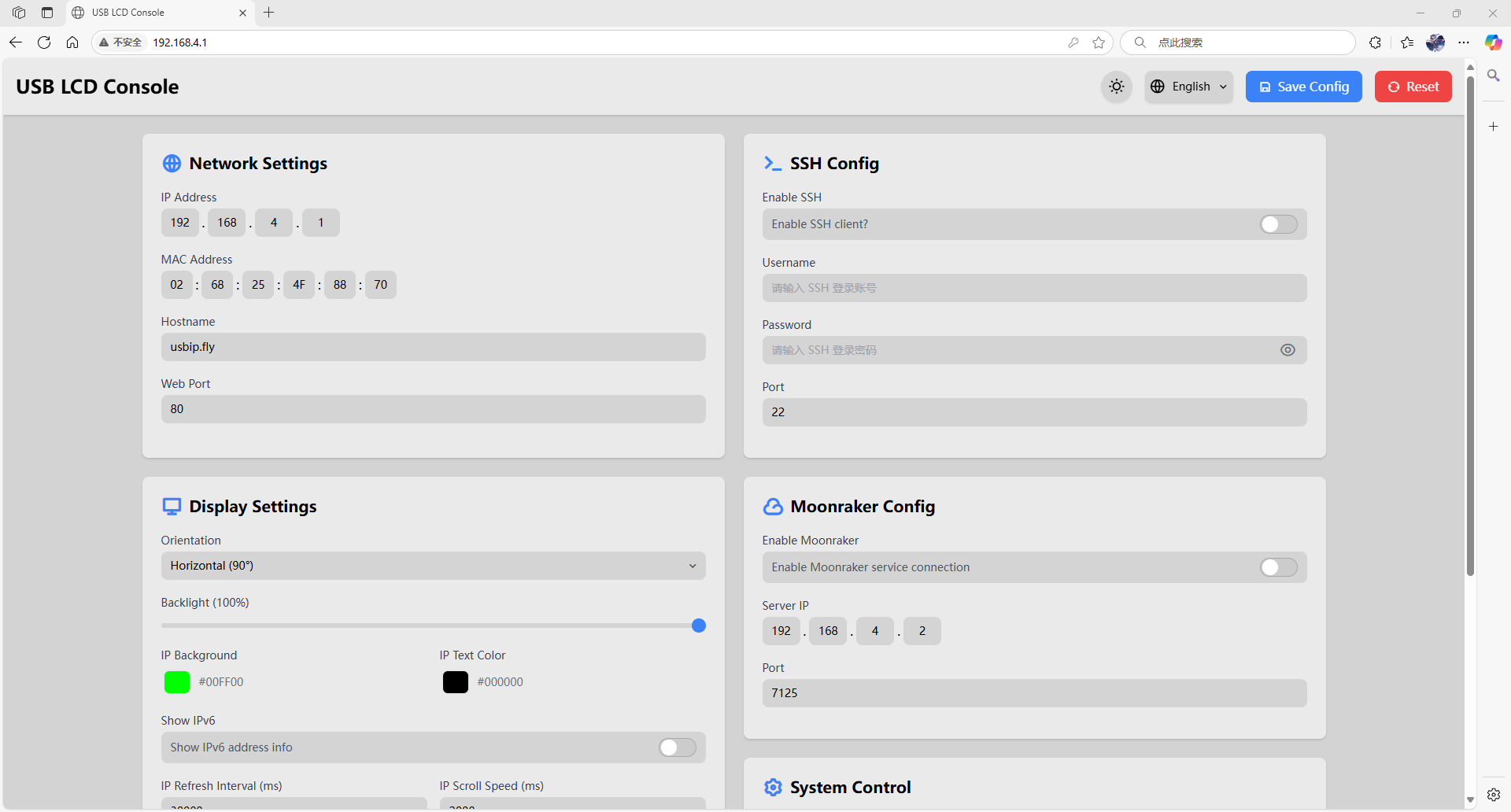

Then: After five seconds, use the browser in WINDOWS and enter http://192.168.4.1/ in the address bar. Press Enter, and the interface below will appear.

Loading...

Interface Introduction​

Network Settings​

  • You can set the IP address, MAC address, hostname, and backend management port of U-IP.
  • Do not乱set.
    Loading...

Display Settings​

  • You can set the display direction, backlight brightness, and whether to display the connected machine's IPV6 address, etc.
    Loading...

System Control​

  • You can set the firmware version, and you can restart the device or enter the U-IP burning mode.
    Loading...

System Connection Configuration​

Moonraker Configuration​

  • The first is whether to enable Moonraker connection, which is enabled by default.
  • The second is the automatically assigned IP address for the machine.
  • The third is the Moonraker port number, which defaults to 7125.
    Loading...

SSH Configuration​

  • For special systems, you can try this method, but note that not all machines can use this function normally.
  • After opening the SSH connection, enter the SSH account and password of the machine, with the default port number being 22.
  • This option logs into the machine via SSH and retrieves the machine's IP and system resources. If it cannot be retrieved, it will loop continuously on the startup screen.
    Loading...
