Boot Interface

Loading...

First Interface

Important Notes

• The system must support ECM or Rndis; otherwise, normal operation is not possible.
• This product is specifically designed for Klipper. It requires the Moonraker service to display IP and resource information. Otherwise, you need to access the backend and configure SSH mode to use it.

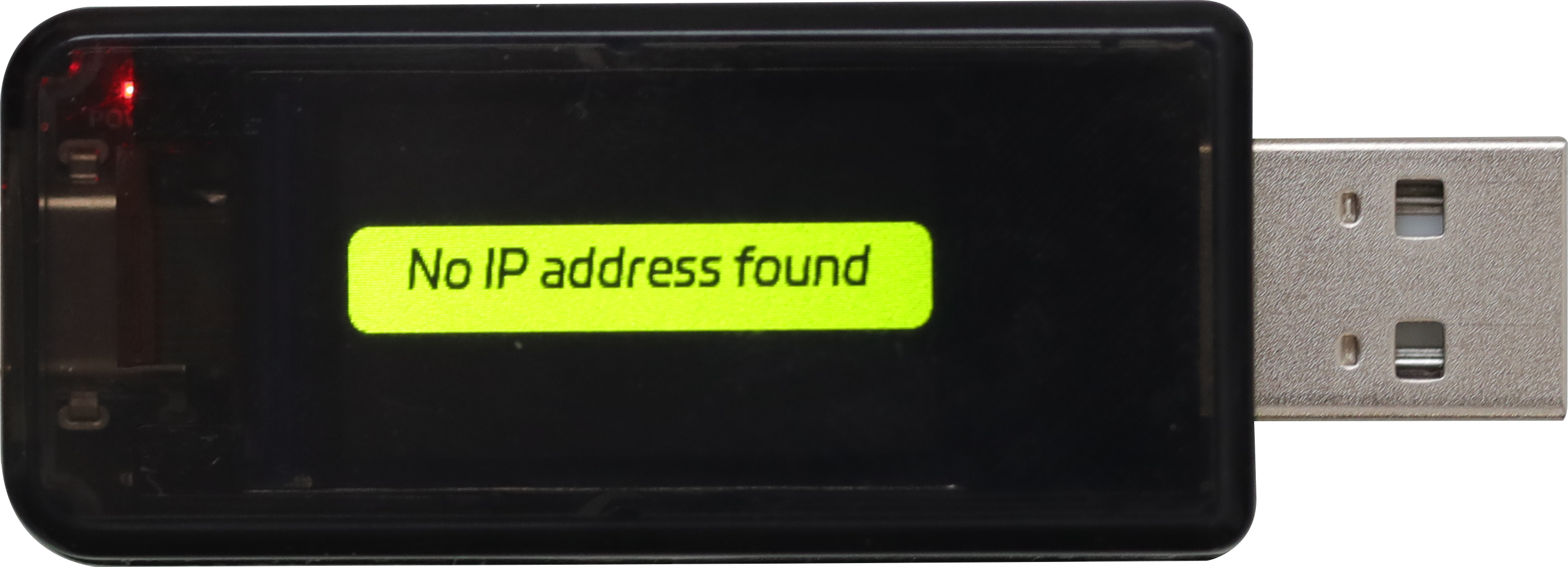

• The IP display shows information read from the connected machine. If it cannot be read or no IP is detected, a prompt will appear.
  Loading...

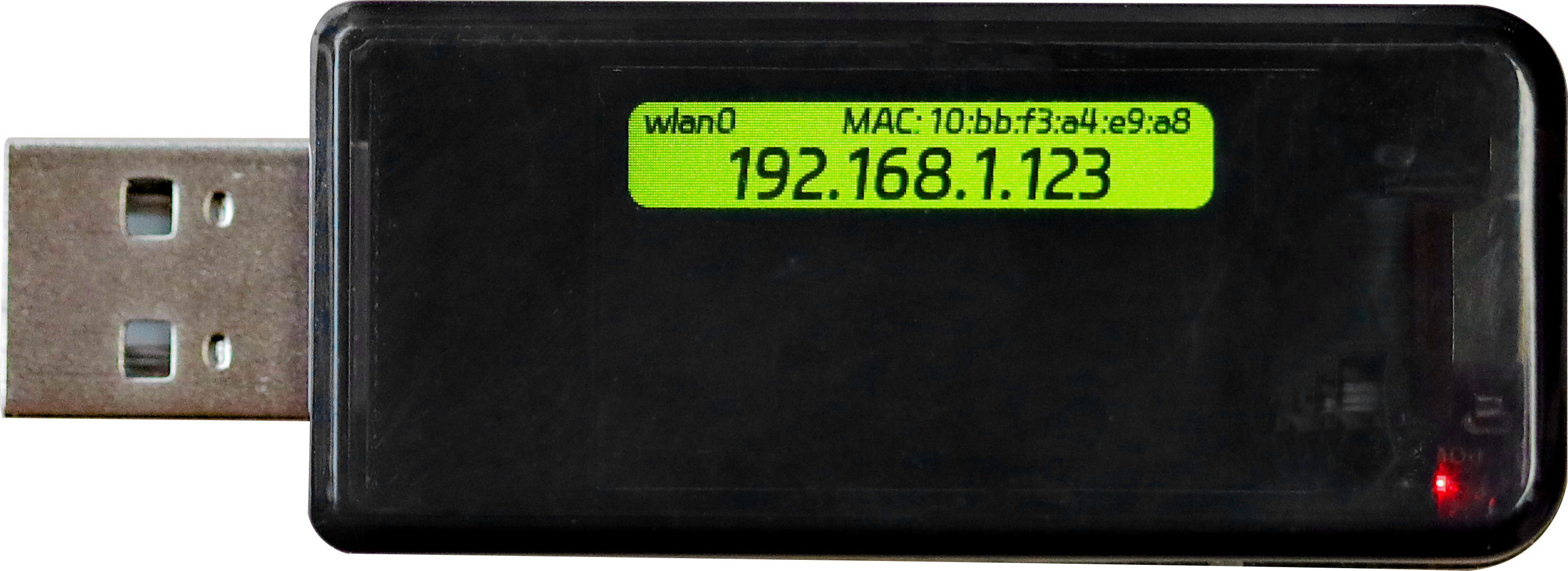

• If successfully read, the following interface will appear (the IP is displayed according to the host machine).
  Loading...

Second Interface

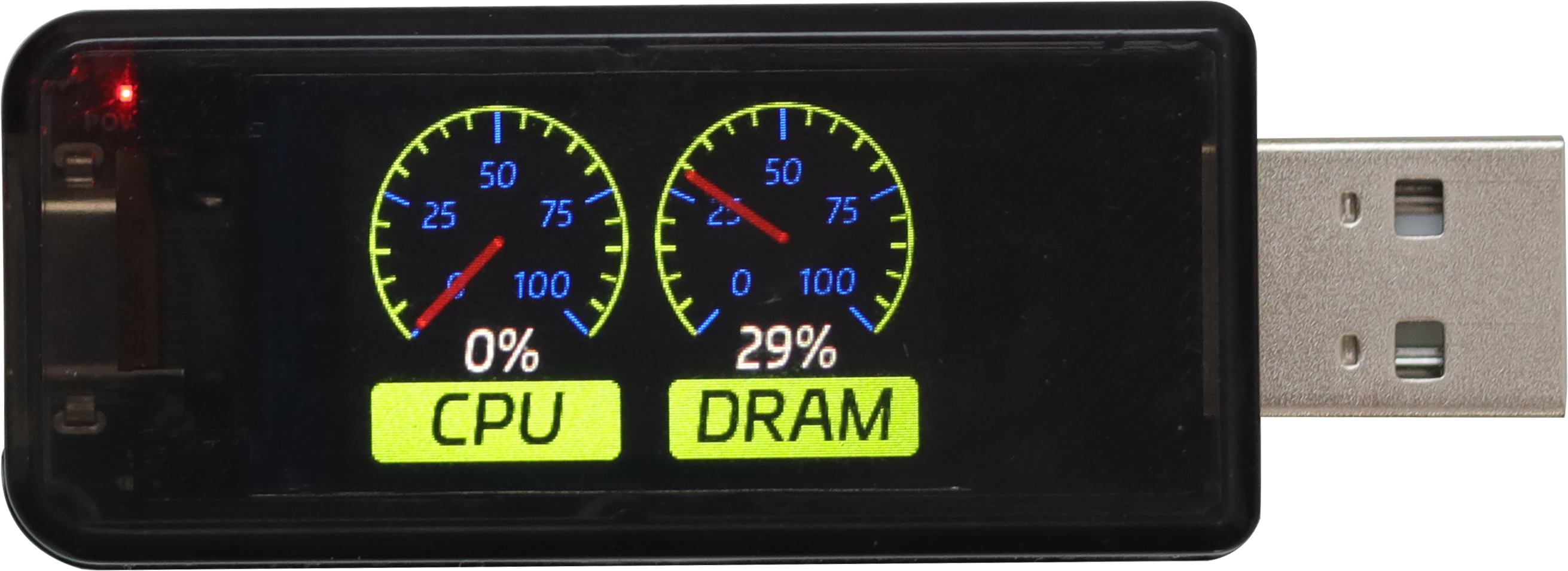

• Displays the CPU and memory usage of the connected machine.
  Loading...

Third Interface

• Displays the services running on the host machine. Note that only services related to Klipper are shown.
• If a service is not started, a red dot appears in front of it.
• If a service is started, a blue dot appears in front of it.
  Loading...
