Firmware Update

Important Notes
  • Requires a WINDOWS system to operate
  • Only the two connection methods below can be used, and you must choose one of them. There are no other connection methods!!!

Download Firmware​

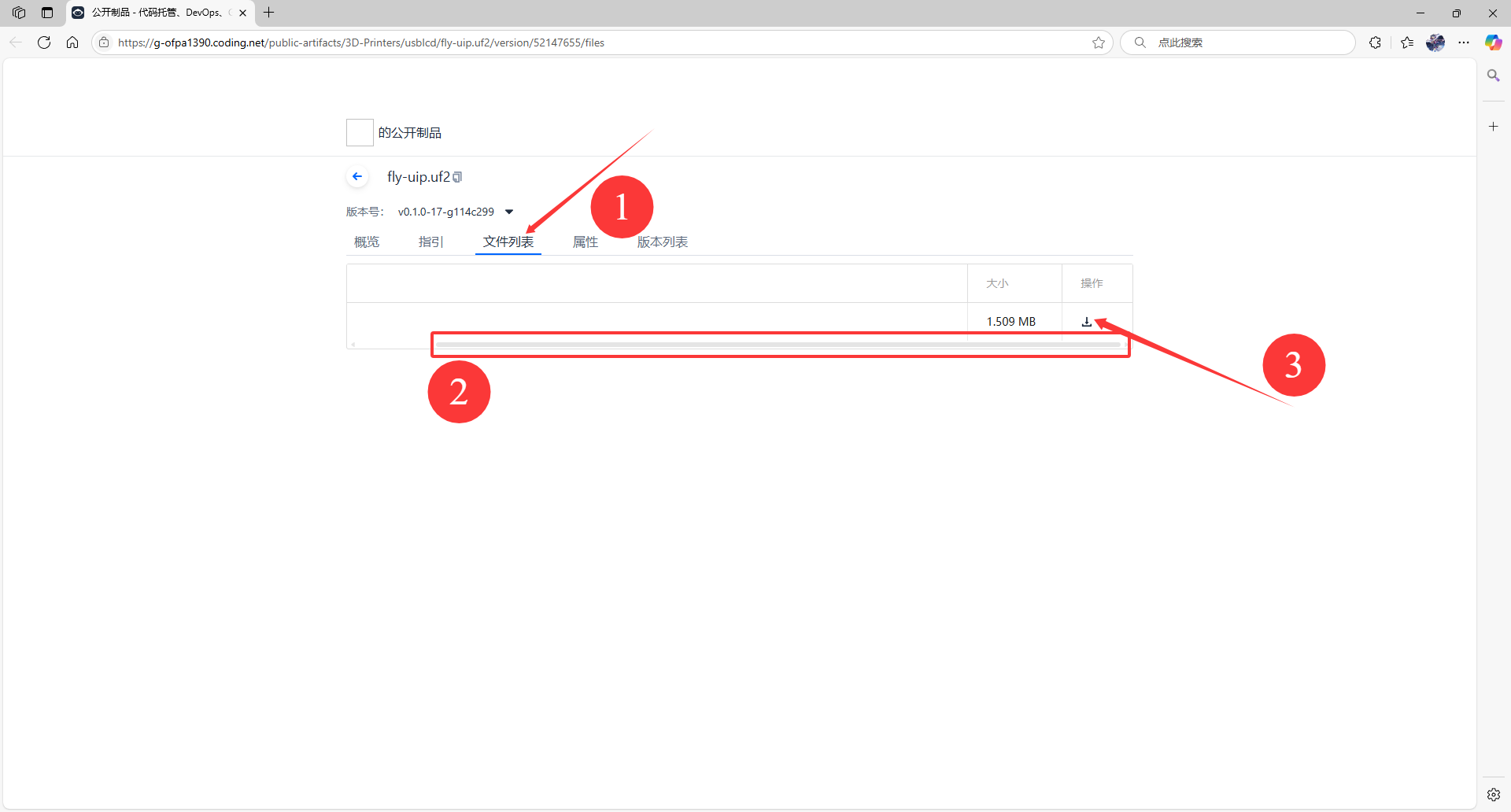

  • Click the download link below
  • Loading...

Update Method​

  • After connecting the U-IP to the computer, enter 192.168.4.1 in the browser's address bar

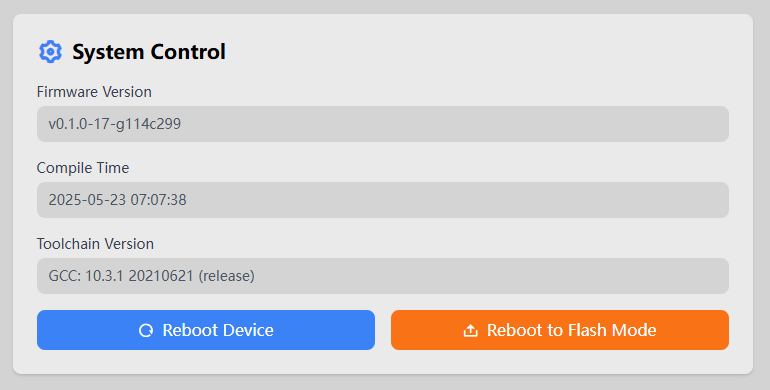

  • Find System Control and click "Restart to Flashing Mode"
    Loading...

Update Firmware​

  • After clicking "Restart to Flashing Mode," the computer will pop up the RPI-RP2 disk
    Loading...
  • Copy the firmware to be flashed into it
  • Reference
    Loading...
  • After copying the firmware, wait about ten seconds. The RPI-RP2 disk will automatically disappear, indicating that the firmware flashing is complete!
